A parking structure near the Anaheim Resort District recently showed unexpected pavement dips after the first wet season. The culprit was collapsible soil — a loose, dry deposit that suddenly settles when saturated. For any new development in Anaheim, from commercial plazas to residential subdivisions, evaluating this soil behavior early can prevent costly structural repairs. We perform systematic laboratory testing that identifies collapse potential before foundation work begins, giving project teams clear data to decide on ground improvement or deeper support systems. Complementing this evaluation with a limits-atterberg analysis helps classify soil behavior under moisture changes, while densidad-cono-arena field checks verify compaction in fill zones.
Collapsible soils in Anaheim can undergo 5% to 15% vertical strain upon wetting — enough to crack slabs and tilt foundations if missed during pre-construction testing.
Methodology and scope
Anaheim sits on young alluvial deposits from the Santa Ana River floodplain, mixed with older terrace gravels and man-made fills from decades of urban expansion. These soils often have a metastable structure: low density and high void ratio when dry, but prone to sudden volume reduction upon wetting. Our evaluation process follows ASTM D5333 to measure collapse potential under controlled moisture and load conditions. We also assess dry density and natural moisture content to predict how the soil will behave during seasonal rain or irrigation leaks. A key step is collecting undisturbed samples using thin-wall tube methods, then testing them in a consolidation frame to quantify collapse strain under expected foundation pressures. For sites with variable fill layers, we integrate excavaciones-profundas data to correlate collapse zones with soil stratigraphy across the lot.

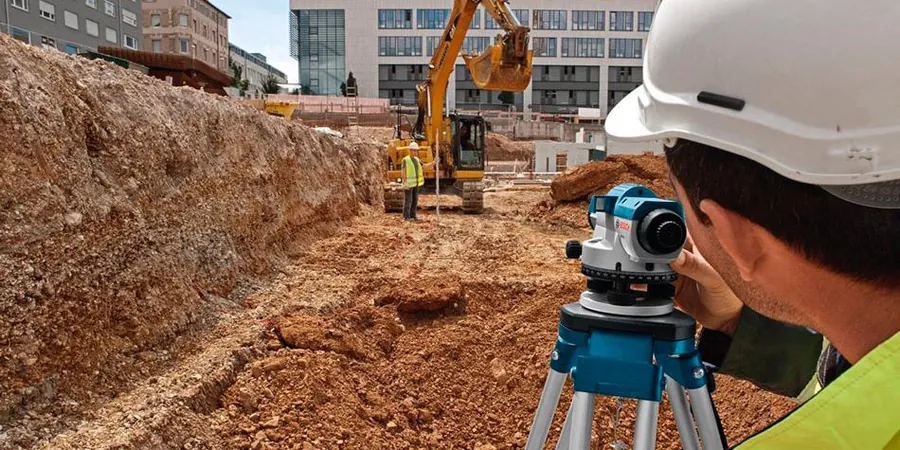

Technical reference image — Anaheim
Local considerations
A common mistake we see in Anaheim is assuming that a soil with high dry strength is safe for shallow foundations. Builders sometimes skip collapsible soil evaluation because the ground feels firm during auger drilling. But that firmness vanishes once water infiltrates — from landscape irrigation, broken utility lines, or even heavy seasonal rain. The result is differential settlement that cracks floor slabs, misaligns door frames, and strains utility connections. Fixing this after construction costs ten times what a pre-build evaluation would have. The risk is especially high near the Santa Ana River channel and in areas where undocumented fill was placed before modern compaction standards existed.
Oedometer-based test that measures vertical strain under wetted conditions at representative foundation pressures. Results classify soil as non-collapsible, moderate, or severe.
02
Undisturbed Sampling (Thin-Wall Tubes)
Shelby tube and pitcher sampler methods to retrieve high-quality samples from alluvial and fill layers without disturbing the metastable structure.
03
Index Property Characterization
Atterberg limits, dry density, and natural moisture content to identify soils with collapse potential and correlate with Unified Soil Classification System (USCS) groups.
04
Wetting-Induced Settlement Analysis
Combined lab data and site geometry to predict total and differential settlement under design loads, including recommendations for pre-wetting or deep foundation alternatives.
Applicable standards
ASTM D5333-03 (Standard Test Method for Measurement of Collapse Potential of Soils), ASTM D1586-18 (Standard Test Method for Standard Penetration Test), IBC 2018 Section 1804 (Soil Investigations and Foundation Design), ASCE 7-16 (Minimum Design Loads for Buildings, including settlement criteria)
Frequently asked questions
How much does a collapsible soil evaluation cost in Anaheim?
The typical cost ranges between US$730 and US$2,650 depending on the number of test pits, sample depth, and number of collapse tests required. A standard residential lot with 3 to 5 samples falls at the lower end; larger commercial sites with deep profiles are at the higher end.
What soil types in Anaheim are most likely to collapse?
Young alluvial sands and silts with low plasticity, loose fills from historic grading, and dry terrace deposits are the main concerns. These soils often have low moisture content and high void ratios, making them prone to sudden densification when wetted.
Can I build on collapsible soil without removing it?
Yes, if collapse potential is moderate. Options include pre-wetting and dynamic compaction to collapse the soil before construction, or designing deep foundations that transfer loads to stable layers below the collapsible zone. Our evaluation provides the collapse strain data needed to choose the right approach.
How soon can I get results from a collapsible soil test?
Standard turnaround is 5 to 7 business days from sample delivery. Rush testing can be arranged within 3 days for an additional fee. The collapse test itself requires about 48 hours of controlled loading and wetting cycles.
Location and service area
We serve projects across Anaheim and its metropolitan area.
