Grouting design in Anaheim must address the city's mixed geology: shallow alluvial fans overlying fractured Santiago Peak volcanics and San Onofre Breccia. Per IBC 2021 Section 1806 and ASTM D5092-04, the design of permeation and compaction grouting requires site-specific knowledge of fracture aperture, groundwater gradient, and soil void ratio. Anaheim sits within the Peninsular Ranges geomorphic province, where bedrock permeability varies by several orders of magnitude. Before specifying injection pressures and grout mix designs, it is standard practice to run permeability field tests to characterize the natural hydraulic conductivity and ensure the grout travels the intended distance without unintended hydrofracture.
Grouting design in Anaheim integrates fracture characterization from field permeability tests with grout rheology to achieve a target modulus gain of at least 30% in treated zones.
Methodology and scope
Anaheim receives an average annual rainfall of about 13.4 inches, concentrated between November and March, which drives seasonal groundwater fluctuations that directly affect grouting programs. During drier months, the water table can drop below the grouting horizon, reducing the risk of dilution but increasing the need for low-viscosity cementitious mixes that can penetrate fine fissures. The local soil profile includes silty sands (SM) and poorly-graded sands (SP) with occasional clay lenses, materials that respond differently to different grout types. For projects where the grout must seal deformable seams, a compression simple test on core samples helps establish the stiffness contrast between injected zones and native material. Grouting design in Anaheim must also account for the presence of undocumented fill in older industrial parcels near the Santa Ana River corridor.

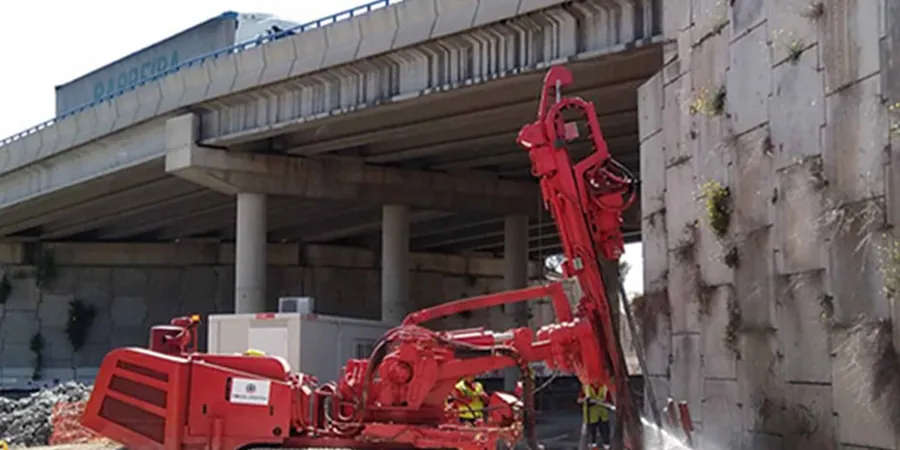

Technical reference image — Anaheim
Local considerations
The risk of grout bypass and washout is elevated in Anaheim's alluvial channels because of the high groundwater velocity that can occur after sustained rain. The Santa Ana River watershed drains a large area, and during storm events the subsurface flow in the upper gravel layer can exceed 1 m/day, potentially flushing unset grout before it gains strength. In zones with loose, collapsible sands, excessive injection pressure can cause hydrofracture and heave, damaging adjacent structures. A staged, split-spacing approach with real-time pressure and volume monitoring minimizes these risks. Grouting design in Anaheim should never rely on a single injection phase; verification boreholes and post-treatment packer permeability tests are essential to confirm continuity of the treated mass.
Targeted injection of low-viscosity cementitious or chemical grouts into the pore space of SM/SP sands to reduce permeability and increase soil stiffness. Includes field permeability testing, grout rheology optimization, and pressure-volume monitoring during injection. Designed to achieve a minimum 10-fold reduction in hydraulic conductivity.
02
Compaction Grouting for Settlement Control
High-mobility, low-slump grout injected under controlled pressure to densify loose fill and collapsible soils. Suitable for pre-construction mitigation beneath shallow foundations in Anaheim's older industrial zones. Includes verification with CPT or SPT post-treatment to confirm a 20% increase in tip resistance.
Applicable standards
ASTM D5092-04 (Standard Practice for Design and Installation of Groundwater Monitoring Wells), ASCE/GI 58-21 (Grouting for Ground Improvement – Design and Construction), IBC 2021 – Chapter 18 (Soils and Foundations)
Frequently asked questions
What is the difference between permeation grouting and compaction grouting?
Permeation grouting fills the void space of granular soils with low-viscosity grout without displacing the soil matrix, reducing permeability and increasing cohesion. Compaction grouting uses a stiff, low-slump grout that expands the soil mass as it is injected, densifying loose zones and improving bearing capacity. The choice depends on the target soil type, void ratio, and depth.
How much does a grouting design study cost in Anaheim?
The cost for a complete grouting design study (including field permeability tests, laboratory mix design, injection plan, and verification) typically ranges between US$1,240 and US$3,900. Final pricing depends on the number of test points, grout volume, and depth of treatment.
Which ASTM or IBC standards apply to grouting design in Anaheim?
The primary standard is ASTM D5092-04 for groundwater monitoring well design, which covers borehole sealing and annular space grouting. For structural grouting, the IBC 2021 Chapter 18 and ASCE/GI 58-21 provide guidance on design, testing, and quality assurance. Local amendments to the California Building Code may impose additional seismic requirements.
Can grouting be used to mitigate liquefaction risk in Anaheim?
Yes, permeation grouting can be used to densify loose saturated sands and reduce the potential for liquefaction-induced settlement. However, it is most effective in soils with a fines content below 15% and a relative density less than 60%. A site-specific liquefaction analysis (per Youd-Idriss 2001) should precede the grouting design to target the vulnerable layers.
How long does a grouting project in Anaheim typically take?
A typical grouting program for a residential or light commercial site (e.g., 5–15 injection points) takes 3 to 7 days of field work, plus 2 to 4 weeks for mix design and verification testing. Larger projects with multiple phases may require a month or more. The schedule is influenced by weather, groundwater conditions, and access constraints.
