The contrast between the alluvial soils near the Santa Ana River and the denser older deposits around the Anaheim Hills creates very different demands for retaining wall design. In the flat areas, we commonly encounter silty sands and soft clays with groundwater within 3 to 5 meters, whereas the hillside terrain presents stiffer claystone layers that require careful evaluation of lateral earth pressures. Our laboratory team has processed hundreds of samples from both sectors, and the difference in drained friction angles can exceed 10 degrees between these two zones. For projects in the alluvial plain, we often recommend complementing the investigation with asentamiento diferencial analysis to predict long-term movement behind the wall, while hillside sites demand a thorough estabilidad taludes check to rule out deep-seated failure surfaces.
In Anaheim, the difference in drained friction angles between alluvial and hillside soils can exceed 10 degrees, directly altering the active pressure coefficient.
Methodology and scope
We mobilize a fully equipped geotechnical rig with a 75-kN hydraulic push system and a 900-kg hammer for SPT sampling. The first step in any retaining wall design in Anaheim is a site-specific soil boring program following ASTM D1586-18 to obtain undisturbed samples and measure N-values. Once the soil profile is defined, we run direct shear tests under consolidated-drained conditions per ASTM D3080 to derive the effective stress parameters. Our laboratory also performs triaxial compression testing on cohesive layers to capture undrained shear strength, which directly influences the active pressure coefficient used in the design. For walls taller than 4 meters, we incorporate the results into the capacidad de carga evaluation to ensure the foundation soil can support both vertical loads from the wall and the overturning moment imposed by lateral forces.

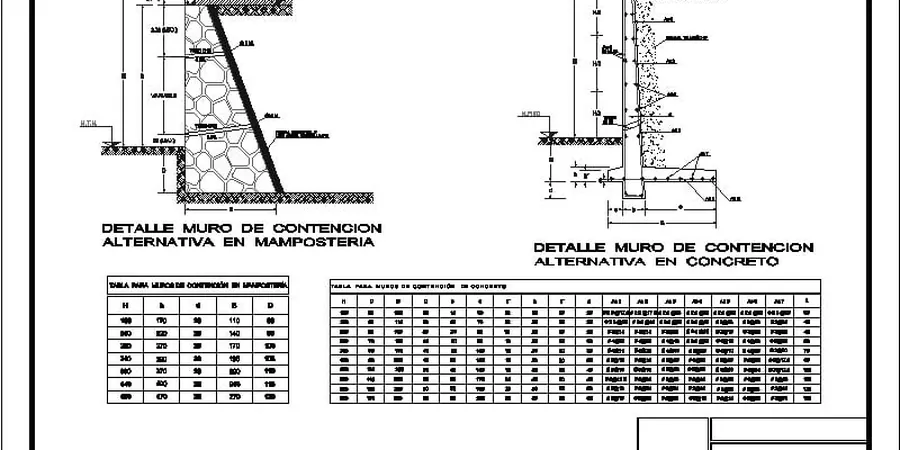

Technical reference image — Anaheim
Local considerations
In Anaheim, we often see that retaining walls built without accounting for the perched water table after heavy winter rains end up with hydrostatic pressure buildup behind the stem. The alluvial sequence near the river can develop a temporary water level within 1.5 meters of the surface after a series of storms, doubling the total lateral load on the wall. Our team has measured cases where ignoring this condition led to wall rotation of 30 to 50 mm within two years. That is why every retaining wall design in Anaheim we support includes a drainage layer, weep holes, and a filter fabric to prevent soil migration — a simple measure that avoids costly repairs.
Boreholes to depths of 10–15 meters, SPT sampling, laboratory testing for strength and compressibility, and a detailed report with lateral earth pressure coefficients and recommended wall type.
02
Seismic Earth Pressure Analysis
Evaluation of pseudo-static seismic coefficients per ASCE 7-22, calculation of dynamic increment, and verification of wall stability under maximum considered earthquake (MCE) conditions.
What soil parameters are most critical for retaining wall design in Anaheim?
The effective friction angle and the unit weight of the backfill are essential because they determine the active and passive earth pressure coefficients. For cohesive layers, the undrained shear strength controls short-term stability. We always run direct shear tests and, when necessary, consolidated-undrained triaxial tests to capture these values accurately.
How much does a retaining wall geotechnical study cost in Anaheim?
The typical range for a residential or small commercial wall study is between US$1.070 and US$4.350, depending on the number of borings, depth of investigation, and laboratory testing required. A detailed quote is provided after reviewing the project scope.
Does the seismic zone in Anaheim affect retaining wall design?
Yes. Anaheim lies in Seismic Design Category D per the IBC, which means we must add a pseudo-static horizontal acceleration to the earth pressure calculation. The seismic increment can increase the total lateral load by 20% to 40% compared to static conditions, especially for walls over 3 meters high.
