Anaheim grew fast after the 1950s, with Disneyland sparking a wave of hotels, parking structures, and residential tracts. Much of that construction sits on alluvial fan deposits from the Santa Ana River and older terrace gravels. When you cut and fill for a new warehouse near the Anaheim Convention Center or a subdivision off Katella Avenue, the engineered fill has to reach a target density. That means running a Proctor test in Anaheim before the first lift of soil is placed, so the contractor knows the optimum moisture content and maximum dry density. Without that baseline, you risk soft zones that settle unevenly under a slab on grade. The local soil profile here tends to be sandy to silty with variable gravel layers, so the standard Proctor curve can shift quite a bit from one lot to the next.
On a 12-foot fill behind a retaining wall near the 91 freeway, a single Proctor curve saved the project from three weeks of rework.
Methodology and scope
Alluvial fans on the west side of Anaheim typically contain loose silty sands that compact to about 95% of Modified Proctor with 8–10% moisture. Over toward the Anaheim Hills, the material turns into stiffer clayey gravels that need a higher compactive effort. The Proctor test in Anaheim follows ASTM D698 for Standard effort and ASTM D1557 for Modified effort, and we pair it with granulometría to see the particle size distribution, because a gap-graded sand won't compact the same as a well-graded one. We also run limites-atterberg on the fines fraction to check plasticity; high PI material can be tricky to compact and may need moisture conditioning. For pavement subgrades and structural fills, the results feed directly into the ensayo-cbr to estimate bearing capacity after compaction.

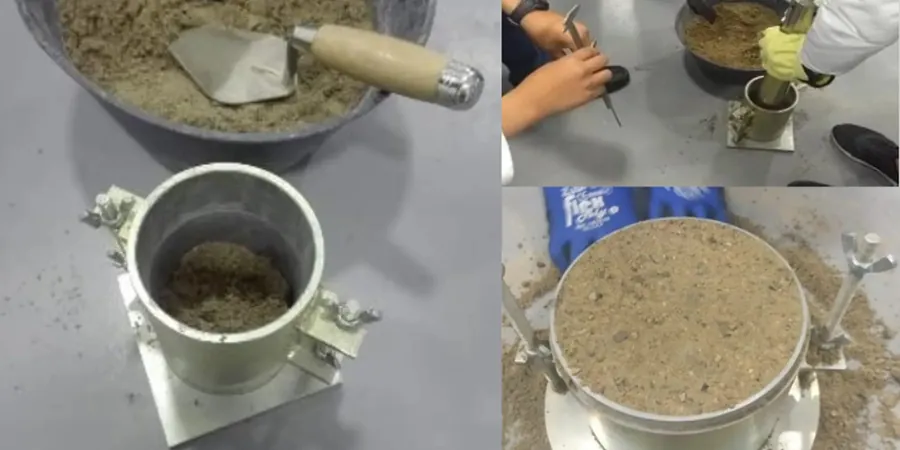

Technical reference image — Anaheim
Local considerations
The difference between a fill placed in the flat area near the Honda Center and one up in the Anaheim Hills is night and day — the lower ground has deep, loose sands that can settle if compacted dry, while the hillside cuts expose old terrace deposits with high fines content. If you apply the same moisture target from a Proctor test in Anaheim on the flat side to a hillside fill, you will end up with a fluff zone that pumps under a roller. We have seen contractors try to guess the optimum from a neighboring project and then watch the nuclear gauge read 88% for two days. That is lost time and re-compaction cost. The Proctor test in Anaheim has to be run on the actual material that will go into the fill, not on a stockpile sample from a different cut. Each borrow source in this city has its own compaction signature.
4-inch or 6-inch diameter, depending on max particle size
Optimum moisture content range
Typically 6%–14% for Anaheim soils
Maximum dry density range
105–130 pcf for most local fills
Sample mass required
Approximately 35–50 lb for a complete curve
Associated technical services
01
Standard Proctor Test (ASTM D698)
For light compaction projects such as utility trenches, residential slabs, and shallow fills where the compactive effort is low. We determine optimum moisture content and maximum dry density using the 5.5-ft-lbf/in³ energy level.
02
Modified Proctor Test (ASTM D1557)
For high-traffic pavements, heavy embankments, and structural fills requiring a higher density. The 12.4-ft-lbf/in³ effort simulates the compaction achieved by heavy rollers and vibratory equipment.
How is a Proctor test different from a field density test?
The Proctor test is a laboratory procedure that establishes the relationship between moisture content and dry density for a specific soil. It gives you the target values (optimum moisture and maximum dry density). The field density test, such as a sand cone or nuclear gauge, measures the actual in-place density after compaction. The two are compared to calculate percent compaction.
Which Proctor method should I use for a parking lot in Anaheim?
For a parking lot with asphalt pavement and light truck traffic, the Standard Proctor (ASTM D698) is typically sufficient. However, if the subgrade will be subjected to heavy waste trucks or fire lane loads, the Modified Proctor (ASTM D1557) is more appropriate to ensure the fill can support the higher stresses without excessive deformation.
Can I use a Proctor curve from a nearby site in Anaheim?
It is not recommended. Soils vary significantly across Anaheim — from sandy alluvium near the river channel to clayey gravels in the hills. Even within the same subdivision, a change in the borrow source can shift the optimum moisture by 3% to 5%. Running a dedicated Proctor test on the actual fill material is the only reliable way to set your compaction target.
How long does the Proctor test take in your lab?
A standard Proctor test typically takes 24 to 48 hours from sample receipt, assuming the material is at its natural moisture content. If the sample needs drying or wetting back to multiple moisture points, the timeline extends by one to two days. We coordinate with the project schedule and can prioritize when the fill placement is imminent.
What is the typical cost range for a Proctor test in Anaheim?
For a single Proctor test (Standard or Modified) with a full five-point curve, the cost typically ranges between US$100 and US$230. The variation depends on whether the sample requires additional processing, the number of moisture points tested, and if you need the results expedited. We provide a firm quote after reviewing the material description and project scope.
