Given Anaheim's location on the alluvial plain of the Santa Ana River, the subsurface consists of interbedded sands, silts, and clays that pose unique tunneling challenges. ASCE 7 and IBC require site-specific seismic hazard and liquefaction assessments for any underground structure. Our geotechnical analysis for soft soil tunnels in Anaheim integrates these codes with ASTM D1586 SPT and ASTM D2487 soil classification to characterize the full soil profile. We also incorporate a MASW survey to define the shear wave velocity profile and assign the correct site class, which directly drives seismic design parameters for the tunnel lining. This phased approach ensures the tunnel is designed for the actual ground conditions.
In Anaheim, soft-ground tunnel design demands a thorough liquefaction assessment — loose sands below the water table can trigger severe ground loss during an earthquake.
Methodology and scope
Our team deploys a track-mounted drill rig that advances a 4-inch hollow-stem auger to retrieve continuous split-spoon samples at 5-foot intervals.
We log each sample in the field per ASTM D2488 and transport undisturbed tube samples to our lab for triaxial and consolidation tests.
Piezometers installed during drilling monitor groundwater levels across multiple monitoring rounds, critical for buoyancy and dewatering design.
Downhole seismic testing provides P- and S-wave velocity profiles for dynamic analysis.
To evaluate long-term deformation under the tunnel, we perform consolidation tests on clay layers and correlate them with SPT N-values. The final report includes stress-strain parameters, permeability estimates, and soil stiffness profiles. For shallow tunnels in soft ground, we often recommend grouting programs to stabilize the excavation face before TBM breakthrough.

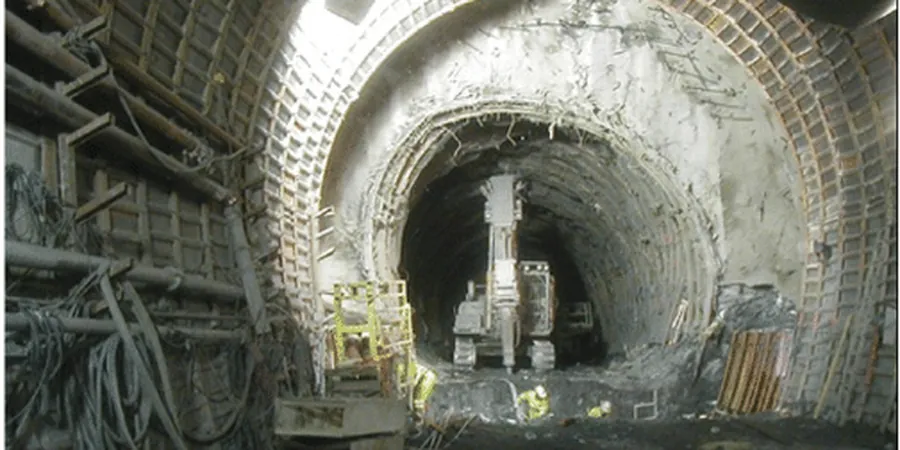

Technical reference image — Anaheim
Local considerations
Anaheim's urban growth accelerated after Disneyland opened in 1955, with infrastructure expanding over former agricultural land and river terraces. These older fills and soft alluvial deposits create variable ground conditions. Our geotechnical analysis for soft soil tunnels in Anaheim identifies the main risk as differential settlement at tunnel portals and transition zones. Loose sands below the water table are also susceptible to liquefaction during a seismic event. We quantify this using Youd-Idriss 2001 simplified procedure and provide mitigation recommendations such as ground improvement or structural reinforcement in the tunnel design.
A phased exploration with borings every 100–200 ft along the alignment, downhole seismic testing, and in-situ permeability tests. Deliverables include a longitudinal soil model with settlement and liquefaction hazard maps.
02
Tunnel Support & Lining Design Review
We analyze ground-lining interaction using empirical and numerical methods, recommend appropriate TBM type (EPB vs. slurry), and check stability against heave and bottom blow-out in soft clays.
Applicable standards
ASCE 7-22 (Minimum Design Loads and Seismic Site Class), ASTM D1586-18 (Standard Test Method for SPT), Youd-Idriss 2001 (Liquefaction Evaluation Procedures)
Frequently asked questions
How is liquefaction potential assessed for tunnels in Anaheim?
We follow the Youd-Idriss 2001 methodology using SPT N-values, fines content, and groundwater depth. The analysis produces a factor of safety against liquefaction for each soil layer. If FS is below 1.3, we recommend ground densification or drainage measures to reduce risk.
What is the typical cost range for a geotechnical tunnel investigation in Anaheim?
For a project of moderate complexity, the cost typically ranges between US$4.540 and US$15.830 depending on the number of borings, testing scope, and reporting requirements. Contact us for a detailed scope-based quote.
How deep should borings be for a shallow soft-soil tunnel?
Borings should extend at least 1.5 to 2 times the tunnel diameter below the invert. In Anaheim, where groundwater is shallow, we also recommend one boring per portal to evaluate stability and dewatering needs.
