The sandy alluvium near the Santa Ana River and the stiffer clay layers around the Platinum Triangle behave completely differently under load. In Anaheim, a diaphragm wall design must account for these contrasts—shallow groundwater in the river basin versus denser, older deposits near the hills. We tailor every retaining wall solution to the specific soil profile of your site. Before finalizing the wall geometry, we cross-check with a stability analysis of adjacent slopes to ensure the excavation doesn't trigger movement in neighboring lots. That's how we avoid surprises during deep basement work in this city.
In Anaheim's alluvial profile, the critical design load often comes not from the soil itself but from the unbalanced water head behind the wall.
Methodology and scope
Here's what we see time and again in Anaheim: the upper 10 to 15 feet of soil are loose sands and silts, often with perched water. Below that, you hit stiff to very stiff clay. A diaphragm wall here must be designed to cut off the water flow and resist lateral earth pressures from both layers. We integrate data from CPT soundings to map the exact transition depth between strata. Our design process includes:
Finite element modeling with PLAXIS or similar, calibrated against local borehole logs.
Water-stop detailing at panel joints—critical in the high-water zones near Ball Road.
Reinforcement schedules that match the bending moments from staged excavation.

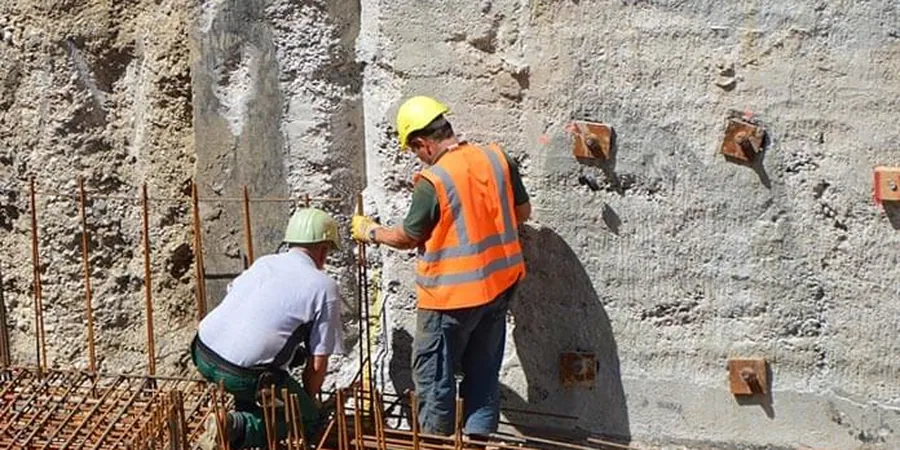

Technical reference image — Anaheim
Local considerations
The combination of shallow groundwater and loose sands in Anaheim's western neighborhoods creates a real risk of base instability during panel excavation. If the bentonite slurry density isn't matched to the in-situ soil, you can get trench collapse or excessive lateral movement. We've seen it happen on projects near Katella Avenue where the water table sits at 3 m depth. Our design specifies the required slurry level and density for every panel, and we recommend real-time monitoring of trench stability during excavation. The seismic risk—Anaheim sits in a high-zone area per ASCE 7—also demands that the wall be designed for inertial forces from the retained soil mass.
Full structural design of the wall panel, including reinforcement sizing, joint detailing, and water-stop specification. We produce shop-ready drawings and bar bending schedules.
02
Geotechnical Design Support
Analysis of soil parameters, determination of lateral earth pressures, groundwater control strategy, and seismic load calculations. We integrate your existing geotechnical report or recommend additional field testing.
Applicable standards
ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings, IBC 2021 Chapter 18 (Soils and Foundations), ACI 318-19 Building Code Requirements for Structural Concrete, FHWA-RD-97-130 (Diaphragm Walls – Design and Construction)
Frequently asked questions
How deep can diaphragm walls go in Anaheim's soil?
We have designed walls up to 25 m deep in the stiff clay layers below the Santa Ana River alluvium. The maximum depth depends on the consistency of the clay and the presence of gravel lenses. In the western part of the city, where the water table is high, we typically limit depth to 20 m unless special slurry systems are used.
What is the typical cost range for diaphragm wall design in Anaheim?
For a standard project, the design fee ranges between US$1.820 and US$8.000. This includes structural calculations, reinforcement detailing, and coordination with the geotechnical report. Large or complex walls with seismic demands fall at the upper end. Contact us for a project-specific quote.
Do you handle the construction supervision as well?
Yes. Our team can provide on-site support during panel excavation, concrete placement, and wall testing. We verify that the installed wall matches the design assumptions—panel alignment, concrete quality, and water-stop installation. This step is critical in Anaheim's variable ground.
