Anaheim sits on a mix of alluvial sands and silty clays from the Santa Ana River floodplain, which means subgrade conditions can shift dramatically within a single block. We have seen parking lots crack and residential streets settle unevenly because the design assumed uniform soil. That is why every road subgrade design in Anaheim must start with site-specific sampling and classification. Before placing any fill, we run Atterberg limits and compaction tests to confirm the soil responds predictably under load. For deeper fills we often combine the analysis with a CBR vial test to verify bearing capacity at design moisture content. The goal is simple: match the pavement thickness to the actual ground supporting it.
Matching pavement thickness to the actual ground is the only way to avoid cracks, rutting, and premature failure in Anaheim's alluvial soils.
Methodology and scope
We use a dynamic cone penetrometer for rapid in-situ profiling and take undisturbed tube samples for laboratory compaction curves. Each project in Anaheim gets a tailored suite: Proctor compaction (ASTM D698 or D1557 depending on the expected traffic), California Bearing Ratio on soaked specimens, and swell tests for expansive clay zones.
Field density verification with sand cone or nuclear gauge at every lift
Modified Proctor for heavy-load industrial pavements
Classification per USCS and AASHTO M 145
When the subgrade includes old fill or organic pockets, we add a suelos organicos assessment to decide if removal or stabilization is needed. The entire protocol follows IBC 2021 and AASHTO guidelines to ensure the design survives Anaheim's hot summers and occasional heavy winter rains.

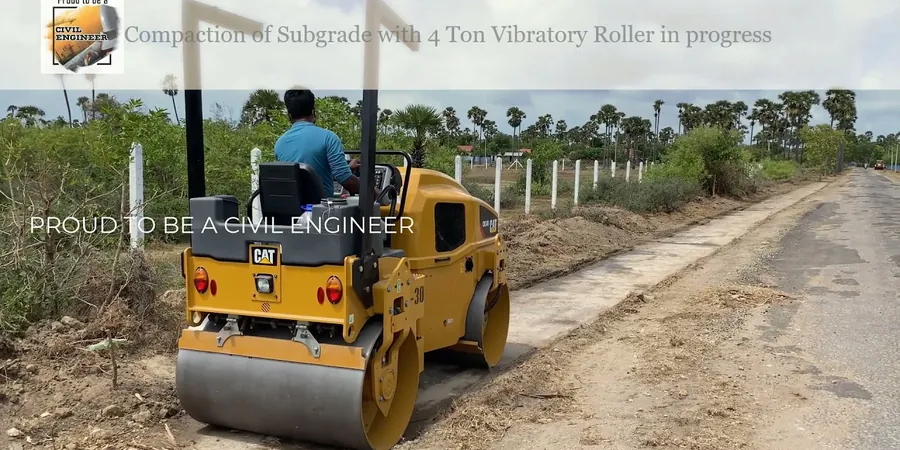

Technical reference image — Anaheim
Local considerations
More than 40% of Anaheim's street network was built before modern compaction specifications, and many residential roads sit on undocumented fill from the 1960s and 70s. When a heavy truck or emergency vehicle passes, the subgrade can deform plastically under the pavement. The primary risk is differential settlement at utility trenches and old dump sites. Without a thorough subgrade investigation, repairs cost three to four times the original pavement budget. We always flag areas near the Santa Ana River channel where groundwater fluctuation can soften the subgrade and reduce CBR by half.
Boreholes, test pits, and laboratory classification (USCS, AASHTO) to map soil variability across the project site. Includes CBR and swell tests.
02
Compaction Control & Proof Rolling
Field density testing (nuclear gauge / sand cone) and proof rolling with a loaded dump truck to detect soft spots before paving.
03
Subgrade Stabilization Design
Recommendations for lime, cement, or geotextile stabilization when native soils are too weak or expansive for the intended traffic loads.
Applicable standards
ASTM D1883 – CBR of Laboratory-Compacted Soils, ASTM D698 / D1557 – Standard / Modified Proctor, AASHTO M 145 – Classification of Soils for Highway Subgrades, IBC 2021 Chapter 18 – Soils and Foundations, Caltrans Highway Design Manual – Chapter 600 (Subgrades)
Frequently asked questions
How much does a road subgrade design study in Anaheim cost?
For a typical residential or light-commercial street, the study ranges between US$1,040 and US$3,170 depending on the number of test pits, laboratory tests, and site access conditions. We provide a fixed quote after reviewing the project scope.
What CBR value is considered acceptable for a residential street subgrade in Anaheim?
Most Anaheim residential streets require a soaked CBR of at least 5% at 95% of maximum dry density. Lower values mean thicker pavement sections or subgrade stabilization.
Do I need a subgrade investigation for a parking lot expansion in Anaheim?
Yes. Parking lots in Anaheim often sit on variable alluvial soils, and a small area can hide old fill or soft clay lenses. A targeted investigation prevents future cracking and ADA slope violations.
How long does a typical road subgrade design study take in Anaheim?
Fieldwork and laboratory testing usually take two to four days. The final report with recommendations is delivered within one week from sample collection.
What happens if the subgrade soil is too weak for the required traffic loads?
We evaluate mechanical stabilization (geogrids), chemical treatment (lime or cement), or removal and replacement with imported granular fill. Each option is costed against the pavement design life.
