Anaheim’s transformation from a late-19th-century wine-growing colony into a major urban and entertainment hub has left a complex geological legacy. The city sits on deep alluvial deposits from the Santa Ana River, with layers of sand, silt, and clay that shift dramatically even within a single block. For any project involving basements, underground parking, or utility vaults, the geotechnical design of deep excavations must account for this variability. In our experience, combining historical records with modern site characterization, such as MASW-VS30 surveys for shear-wave velocity profiles, gives us a reliable starting point. We have seen that ignoring these subsurface nuances often leads to costly surprises during shoring or dewatering phases.
The Santa Ana River alluvium can switch from clean sand to fat clay within meters, making phased excavation design essential for safety and cost control.
Methodology and scope
Consider a recent six-story mixed-use project near the Anaheim Resort area. The contractor planned a two-level basement, but the soil profile revealed loose sands underlain by stiff clay at 12 meters. For the geotechnical design of deep excavations here, we had to evaluate soldier pile and lagging versus secant pile walls, factoring in a high water table that fluctuates seasonally by nearly 3 meters. Key parameters included:
Soil unit weight and friction angles from triaxial tests (ASTM D4767)
Permeability estimates from falling-head tests to size dewatering wells
Modulus of subgrade reaction for deflection analysis of the shoring system
Each decision affects tieback loads and wall displacements. Our team cross-checked these with local case histories from similar Anaheim projects, ensuring the design matched what actually happens in the ground.

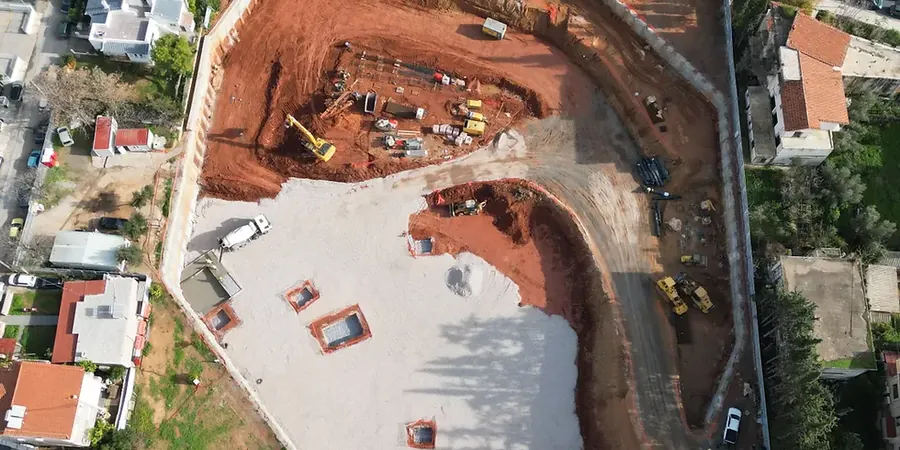

Technical reference image — Anaheim
Local considerations
ASCE 7-22 seismic provisions map Anaheim in a high-hazard zone, and IBC Chapter 18 requires deep excavations to resist both static and dynamic loads. The primary risk we encounter is liquefaction-induced lateral spreading in saturated loose sands below the water table, which can overload shoring systems. Our geotechnical design of deep excavations incorporates cyclic strength ratios from laboratory tests and displacement-based analyses to keep the excavation stable. We also recommend inclinometer monitoring during excavation to verify that wall movements stay within the predicted envelope. This is not theoretical — several local projects have required mid-construction adjustments when unexpected sand layers appeared below the water table.
30°–36° (sands), 0°–28° (clays depending on undrained strength)
Coefficient of earth pressure at rest (K₀)
0.45–0.55 (normally consolidated)
Modulus of subgrade reaction (kₕ)
10–30 MN/m³ per meter of wall depth
Allowable wall deflection
12–25 mm for urban excavations
Associated technical services
01
Seismic Site Response Analysis for Deep Excavations
Using 1D and 2D wave propagation models, we evaluate how the soil column amplifies ground motions and affects lateral earth pressures on shoring walls. This is critical in Anaheim's alluvial basin, where deep deposits can amplify long-period motions.
02
Dewatering System Design and Permitting
We design and specify dewatering wells, sumps, or cutoff walls to manage groundwater inflow during excavation. Our approach includes pumping tests and groundwater modeling to meet local discharge regulations while keeping the excavation dry and stable.
Applicable standards
ASCE 7-22 (Minimum Design Loads and Associated Criteria for Buildings), IBC 2021 Chapter 18 (Soils and Foundations), ASTM D1586-18 (Standard Penetration Test), ASTM D4767-11 (Consolidated Undrained Triaxial Compression Test)
Frequently asked questions
How does the high water table in Anaheim affect deep excavation design?
A shallow water table — often 3 to 6 meters deep — introduces buoyant forces, reduces effective stress, and can trigger piping or heave at the base of the excavation. We typically recommend soldier pile and lagging with tiebacks combined with a dewatering system, or a secant pile wall if groundwater control is critical. The geotechnical design of deep excavations must include seepage analysis and filter design to avoid soil loss.
What is the typical cost range for geotechnical design of deep excavations in Anaheim?
For a standard two-level basement with soldier pile shoring, the geotechnical investigation and design portion typically ranges between US$2.170 and US$7.680, depending on site complexity, number of borings, and laboratory testing required. Larger or more complex sites with seismic considerations may exceed this range.
What soil conditions in Anaheim are most challenging for deep excavations?
Loose, saturated sands below the water table pose the greatest risk because they can liquefy during an earthquake, causing lateral spreading and wall failure. Alternating layers of stiff clay and loose sand also create non-uniform loading on shoring systems. We address these with site-specific soil profiling, cyclic triaxial tests, and displacement-based seismic design per IBC 2021.
Location and service area
We serve projects across Anaheim and its metropolitan area.
