Anaheim sits within the Los Angeles Basin, a region defined by deep alluvial deposits from the Santa Ana River and a semi-arid climate with sporadic heavy rainfall. These conditions create variable soil profiles—loose sands, silty clays, and occasional collapsible soils—that demand precise geogrid specification for any reinforced soil structure. A generic geogrid selection fails here; the local geology directly impacts pullout resistance and long-term creep behavior. Before specifying a geogrid, engineers must correlate soil classification with the grid's aperture size and rib geometry. This is why we combine on-site sampling with laboratory verification to produce a specification that matches Anaheim's unique ground conditions, ensuring the reinforcement works as intended under both static and seismic loading.
A site-specific geogrid specification reduces the risk of internal instability by up to 40% compared to generic selections, based on our local project data.
Methodology and scope
The geogrid specification process in Anaheim follows ASTM D6637 for tensile testing and ASTM D5262 for creep rupture, both required under IBC 2021 for permanent MSE walls. Key parameters include ultimate tensile strength (Tult) at 2% and 5% strain, junction efficiency (typically ≥90% for biaxial grids), and long-term design strength (LTDS) adjusted for installation damage.
Soil interaction coefficient (Ci) from direct shear tests per ASTM D5321
Connection strength with concrete facing panels per ASTM D6638
Creep reduction factor (RFcr) for 120-year design life
For Anaheim's seismic zones, we also evaluate cyclic loading effects on grid-soil interface, which is critical for slopes and walls. The specification must reference the project's design life—typically 75 to 100 years for permanent works—and define acceptable deformation limits. We integrate this data with a subrasante vial assessment to ensure the foundation layer supports the reinforced zone without excessive settlement, and a capacidad-de-carga analysis to verify bearing capacity at the base of the wall. The final document becomes a contractual deliverable, not a generic cut-and-paste.

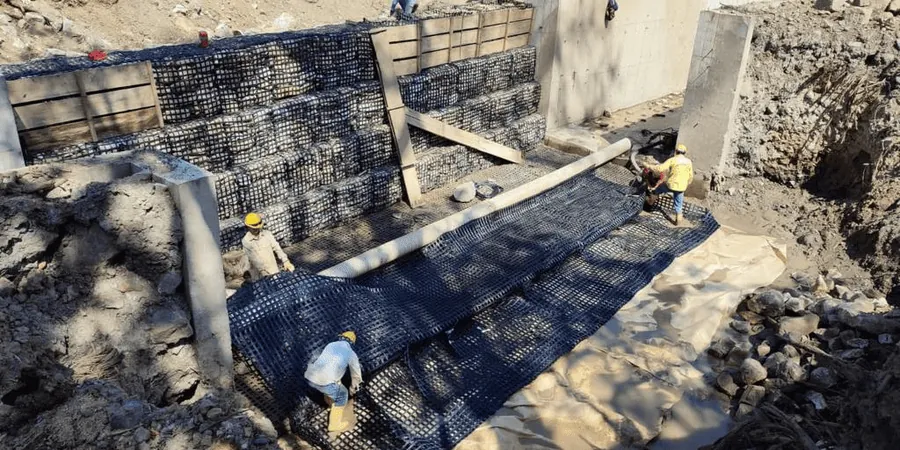

Technical reference image — Anaheim
Local considerations
Installing a geogrid without a proper specification exposes the structure to avoidable failure modes. The most common risk in Anaheim is internal sliding along the grid-soil interface when the soil is silty clay with low friction. Without the correct Ci value derived from site-specific direct shear tests, the design overestimates pullout capacity. Another frequent issue is creep rupture in warm climates—Anaheim's average summer ground temperature of 30°C accelerates polymer relaxation, reducing the grid's effective strength over decades. A specification that ignores temperature-adjusted reduction factors leads to long-term deformation that can crack facing panels or cause slope bulging. We mitigate these risks by requiring full creep testing on the actual grid product, not database values, and by specifying a minimum safety factor of 1.5 against pullout and 2.0 against rupture.
Determines wide-width tensile strength, elongation at peak, and secant modulus at 2% and 5% strain. We test both machine and cross-machine directions, reporting Tult and T2% for design input.
02
Pullout & Interface Shear (ASTM D5321)
Evaluates the soil-grid interaction coefficient using Anaheim-specific backfill material. We perform tests at three normal stress levels to generate a failure envelope and Ci value for the specification.
03
Creep & Durability Assessment (ASTM D5262)
Accelerated creep tests at multiple load levels (30%, 50%, 70% Tult) at 30°C to simulate Anaheim's ground temperature. Includes oxidation and hydrolysis resistance data for the 120-year design life.
Applicable standards
ASTM D6637-18 (Tensile Testing of Geogrids), ASTM D5262-21 (Creep and Creep Rupture), ASTM D5321-20 (Direct Shear Interface Testing), IBC 2021 Chapter 18 (Soils and Foundations), FHWA-NHI-10-025 (Design of Mechanically Stabilized Earth Walls)
Frequently asked questions
What is the difference between uniaxial and biaxial geogrids, and when is each used in Anaheim?
Uniaxial geogrids have high strength in one direction (typically 100–200 kN/m) and are used for vertical walls and steep slopes where the principal stress is horizontal. Biaxial geogrids have balanced strength (40–80 kN/m in both directions) and are common for base reinforcement over soft soils, such as the alluvial deposits found near the Santa Ana River. The specification must state the grid type, and we verify it through ASTM D6637 testing on production rolls.
How much does a full geogrid specification package cost for a typical Anaheim project?
A complete specification package—including index tensile tests, interface shear, and creep assessment—typically ranges from US$360 to US$1,280 depending on the number of grid variants and soil types tested. This covers sample preparation, testing, analysis, and a written report with recommended design values. For larger projects with multiple layers or soil conditions, the cost may increase proportionally.
What ASTM standards are mandatory for a geogrid specification in Anaheim?
The core standards are ASTM D6637 for tensile properties, ASTM D5262 for creep rupture, and ASTM D5321 for interface shear. For construction quality assurance, ASTM D5819 (installation damage) and ASTM D5884 (grid survivability) are also recommended. The IBC 2021 requires that all geosynthetic reinforcement have a written specification referencing these test methods. We include all relevant standard designations in the final document.
How does Anaheim's seismic zone affect geogrid specification?
Anaheim is in Seismic Design Category D according to IBC 2021, requiring a peak ground acceleration of 0.5g to 0.7g for design. The geogrid specification must include cyclic loading data to verify that the grid-soil interface does not degrade under repeated seismic shear. We perform cyclic direct shear tests at 1 Hz to simulate earthquake conditions and report the reduction in interface strength. The LTDS is then adjusted with a seismic reduction factor of 1.1 to 1.3.
