Anaheim sits at an average elevation of 157 feet above sea level, and its subsurface tells a complex story of alluvial fans and ancient river channels. For any construction project here, the Standard Penetration Test (SPT) is the backbone of geotechnical investigation. We use a 140-pound hammer dropping 30 inches to drive a split-spoon sampler, recording blow counts (N-values) every 6 inches. Those numbers directly inform bearing capacity and settlement estimates. Before we mobilize, we often recommend a preliminary calicatas exploratorias to map shallow obstructions, and we cross-check SPT results with ensayo CPT when continuous stratigraphic profiles are needed. Without this data, foundation design in Anaheim would rely on guesswork rather than measured strength.
In Anaheim's alluvial soils, a raw N-value of 15 can become (N1)60 of 25 after correction — that's a 40% difference in interpreted strength.
Methodology and scope
We follow ASTM D1586-18 strictly for every SPT in Anaheim. The test requires a clean borehole, consistent hammer energy, and careful logging of soil type and recovery. Our crew records N1, N2, and N3 blow counts separately, then applies energy correction if the hammer efficiency deviates from the standard 60%. In Anaheim's heterogeneous soils — from loose sands near the Santa Ana River to stiff clays in the hillier west — raw N-values can mislead. We correct for overburden pressure using (N1)60 and apply fines content adjustments per the NCEER 2001 procedures. This is critical when evaluating liquefaction resistance in saturated layers during seismic events. To complement the SPT data, we also run granulometria on recovered samples to classify soils under the Unified System (ASTM D2487). The combination of blow counts and grain-size curves gives us a complete picture of the ground.

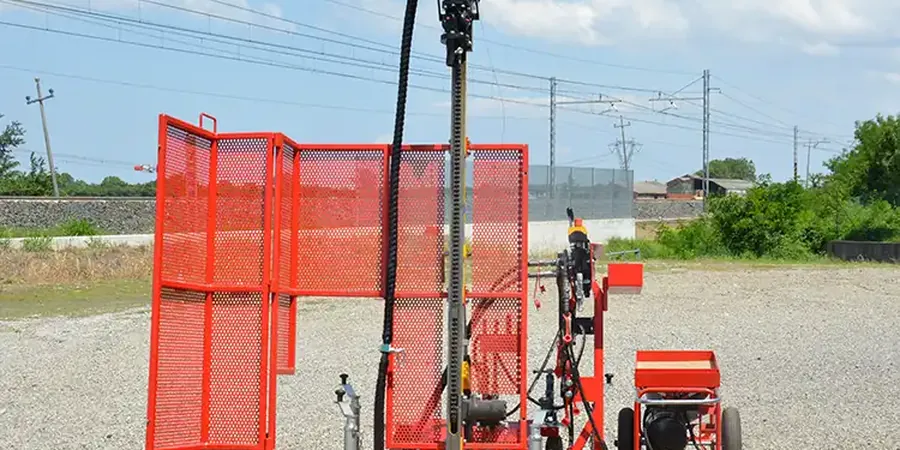

Technical reference image — Anaheim
Local considerations
Anaheim grew rapidly from the 1950s onward, with large tracts of agricultural land converted to residential subdivisions and commercial parks. That development often ignored the underlying soil variability. We see it all the time: a 1980s strip mall on shallow foundations over loose fill that now shows differential settlement. The SPT is our primary tool to detect these weak zones before construction. In seismic design, low N-values in the upper 30 feet indicate potential liquefaction and amplification of ground motion. We use SPT-based simplified methods (Youd-Idriss 2001) to calculate factor of safety against liquefaction for each layer. For projects near the 5 Freeway corridor or the ARTIC transit hub, we flag any zone with (N1)60 below 20 as requiring mitigation — either ground improvement or deep foundations. The cost of ignoring this data far exceeds the investment in a proper SPT program.
For deep foundation design, we run SPT at 5-foot intervals with continuous split-barrel sampling. Each recovered sample is logged, photographed, and bagged for lab testing. We report corrected N-values, soil classification, and SPT-based bearing capacity per Terzaghi and Meyerhof methods.
02
SPT for Liquefaction Assessment
In seismic zones like central Anaheim, we perform SPT specifically to evaluate liquefaction potential. We calculate cyclic resistance ratio (CRR) from corrected blow counts and compare it to cyclic stress ratio (CSR) for a given earthquake magnitude. Results are plotted by depth with factor of safety contours.
What is the difference between N-value and (N1)60 in SPT?
The raw N-value is the sum of blows for the last 12 inches of penetration. (N1)60 corrects that value to a reference effective overburden pressure of 100 kPa and hammer energy efficiency of 60%. In Anaheim's variable-density soils, this correction can change the interpreted strength by 30-50%, especially in loose sands above the water table.
How does SPT help with liquefaction assessment in Anaheim?
SPT blow counts are the input for the simplified liquefaction evaluation procedure (Youd-Idriss 2001). For each soil layer, we compute the cyclic resistance ratio from corrected N-values and compare it to the cyclic stress ratio from the design earthquake. Layers with factor of safety below 1.0 are flagged as liquefiable. In Anaheim, this typically occurs in saturated sands with (N1)60 below 15.
What is the typical cost range for an SPT program in Anaheim?
For a standard residential project requiring 3 to 5 test borings in Anaheim, the cost ranges between US$580 and US$800 per SPT location. This includes mobilization, drilling, sampling, and a basic field report with corrected N-values. Larger commercial programs with deeper borings or additional lab testing will fall outside this range.
Can SPT be performed in difficult access areas of Anaheim?
Yes. Our drill rigs are compact enough for most backyards, parking lots, and alleyways in Anaheim. For extremely tight spaces or steep terrain, we use a portable tripod setup that can be hand-carried to the test location. The SPT procedure remains identical — same hammer, same sampler, same ASTM standard.
