In Anaheim, the subsurface story varies block by block. Near the Santa Ana River you hit soft alluvial silts and sands at shallow depth, while closer to the hills you find denser terrace deposits. A driven pile design that works on Harbor Boulevard might be undersized two miles east. That is why the first step is always a targeted soil investigation. Before prescribing pile type, length, or capacity, we run SPT borings and conduct a MASW-Vs30 survey to map stiffness contrasts across the site. The goal is to match the pile to the actual ground, not to a generic soil profile.
Driven piles in Anaheim alluvium gain significant set-up in silty clays; ignoring it leads to overconservative designs that drive up foundation costs unnecessarily.
Methodology and scope
A common mistake we see in Anaheim is assuming that all driven piles behave the same in granular versus cohesive soils. They don't. In loose sands, the shaft friction builds gradually and the tip resistance dominates; in clay layers, the set-up effect can double capacity over days. A reliable driven pile design accounts for both short-term driving stresses and long-term load transfer. We follow ACI 543R and ASTM D3966 for static load test interpretation, and we model group efficiency when piles are spaced closer than three diameters. For sites near the ARTIC transit hub or the Packing District redevelopment, we also complement the design with cimentaciones sismicas to check seismic settlement under cyclic loading.

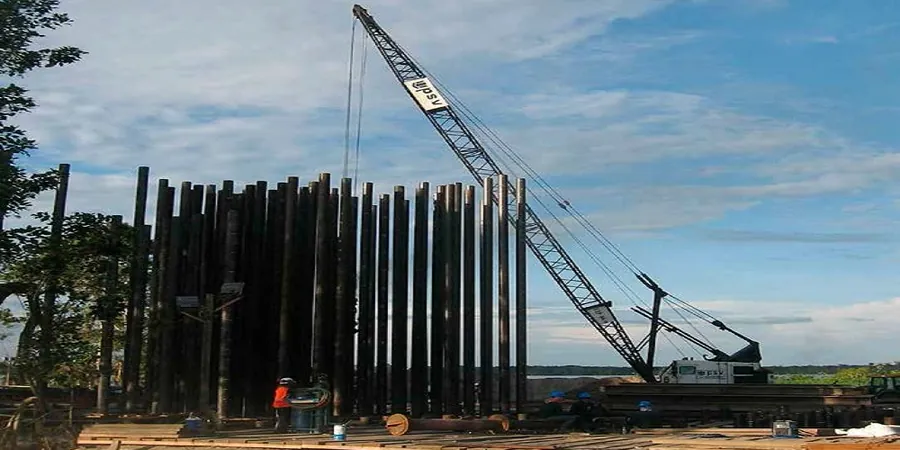

Technical reference image — Anaheim
Local considerations
A five-story hotel on Katella Avenue was designed with shallow footings until the contractor hit a buried channel of loose sand at 4 m depth. The bearing capacity dropped by half and differential settlements became inevitable. The fix involved a driven pile program that had to be field-adjusted for pile refusal in a gravel lens. That project taught us that even a single SPT boring per corner is not enough when the alluvium is heterogeneous. We now insist on a minimum of two borings per structure and a driven pile design that includes wave equation analysis (WEAP) to match the hammer energy to the soil resistance before mobilization begins.
Review existing soil data, recommend pile type (H-pile vs. precast), estimate tip elevation and factored axial capacity for preliminary cost estimates.
02
Final Design & Load Test Program
Complete structural design per ACI 543R and IBC, including group effects, negative skin friction, lateral load checks, and specification of static or PDA load tests.
03
Wave Equation & Driveability Analysis
WEAP modeling to select hammer size and cushion, predict driving stresses, and avoid pile damage during installation in variable Anaheim soils.
Applicable standards
ASCE 7-22 (Seismic & wind loads), ACI 543R-12 (Design & construction of concrete piles), ASTM D3966-18 (Static load testing of piles), IBC 2021 Chapter 18 (Soils & foundations)
Frequently asked questions
How much does driven pile design cost for a typical Anaheim commercial building?
A complete design package for a mid-rise structure (including soil review, structural calculations, and load test specification) ranges from US$1,260 to US$4,740, depending on the number of pile types and required load test iterations. Site investigation costs are separate.
What is the difference between N-SPT and pile capacity in Anaheim soils?
N-SPT gives a blow count that correlates with relative density in sands and consistency in clays. In driven pile design, we use N-values to estimate shaft friction via methods like Meyerhof or FHWA. However, the correlation is site-specific: Anaheim alluvium often contains gravel lenses that spike N-values but do not increase shaft friction proportionally. That is why we always calibrate with a static load test.
Do driven piles need seismic design in Anaheim?
Yes. Anaheim falls in seismic design category D per ASCE 7-22 due to its proximity to the Whittier and Puente Hills faults. The driven pile design must include lateral spreading checks, liquefaction triggering analysis (Youd-Idriss 2001), and ductility detailing at the pile-to-cap connection. We also evaluate group settlement under design earthquake shaking.
Location and service area
We serve projects across Anaheim and its metropolitan area.
