Anaheim sits at an elevation of just 160 feet above sea level, with a subsurface story shaped by the Santa Ana River's alluvial deposits over millennia. These sands, silts, and gravels create a tricky foundation environment where the balance between pile skin friction and end bearing analysis determines whether a deep foundation design is safe or over budget. We work with local geotechnical engineers to run this analysis on every drilled shaft and driven pile we test. The goal is simple: quantify how much load the soil shaft takes along the pile side versus what the tip carries at the bearing stratum. Before mobilizing a rig, we often recommend a MASW-Vs30 survey to map shear wave velocity layering and identify where competent strata sit below the loose alluvium.
In Anaheim's alluvial soils, skin friction often carries more than half the pile capacity — ignoring it can lead to overdesign by 30 percent or more.
Methodology and scope
A six-story apartment complex near the Anaheim Convention Center required 60-foot drilled shafts, but the geotechnical report only provided end-bearing values. That is a common gap. We stepped in with a full pile skin friction vs. end bearing analysis using static load test data from three sacrificial piles. The results showed that skin friction in the dense sand layers contributed 58% of the total capacity, reducing the required pile count by four. We follow ASTM D1143 for static compression tests and ASTM D3689 for tension tests to isolate side resistance. Each analysis includes a breakdown of unit shaft resistance by soil layer using beta and alpha methods. For projects where pile spacing is tight, we integrate asentamiento-diferencial predictions to ensure differential movement stays within tolerable limits under service loads.

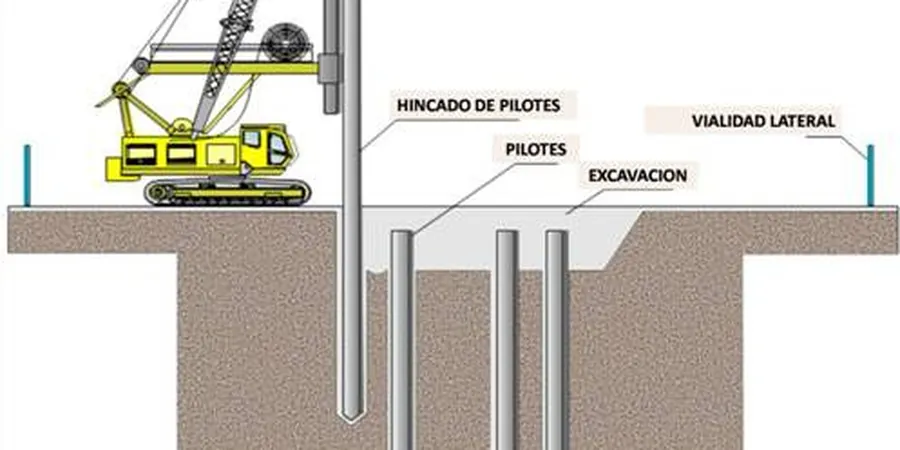

Technical reference image — Anaheim
Local considerations
Anaheim's Mediterranean climate brings dry summers and wet winters, but the water table fluctuates significantly — rising 10 to 15 feet after heavy rain seasons like the 2023 atmospheric river events. When groundwater climbs into the pile shaft zone, effective stress drops, and skin friction can reduce by 30 to 40 percent in granular soils. That is a real risk for projects near the Santa Ana River corridor or in the low-lying areas around the Honda Center. We account for this by running the pile skin friction vs. end bearing analysis under both dry and saturated conditions, using worst-case seasonal water levels based on historical monitoring wells in the Orange County basin.
Reaction frame or bidirectional load cell setup per ASTM D1143. We measure top and tip displacements simultaneously to separate side shear from base resistance. Report includes load-movement curves and failure criterion interpretation.
02
Pile Dynamics & CAPWAP
High-strain dynamic testing with PDA sensors and signal matching through CAPWAP. This method provides skin friction distribution along the shaft and end bearing in real time, ideal for production pile verification.
03
Numerical Modeling & Unit Resistance Back-Calculation
Finite element modeling using Plaxis 2D or LPILE to simulate load transfer under design loads. We calibrate beta and alpha coefficients using local SPT N-values and lab shear strength data from Anaheim boreholes.
How much does a pile skin friction vs. end bearing analysis cost in Anaheim?
For a typical project with three test piles, analysis and reporting ranges between $2,400 and $4,800. This includes static load testing, data interpretation, and a written report with layer-by-layer skin friction breakdown. The final price depends on pile depth, number of test piles, and whether dynamic testing is also required.
What is the difference between skin friction and end bearing?
Skin friction is the load carried by the soil-pile interface along the shaft through adhesion and friction. End bearing is the load transferred through the pile tip to the bearing stratum below. In Anaheim alluvium, skin friction often governs in medium-dense sands, while end bearing becomes dominant only when the pile tips into very dense gravel or bedrock at depth.
How do you separate skin friction from end bearing in a test?
The reference range for this service in Anaheim is US$980 - US$3.440. The final price depends on the project scope and volume.
Which soil layers in Anaheim provide the best skin friction?
Dense to very dense sands and silty sands with SPT N-values above 30 blows per foot typically yield unit shaft resistances of 0.8 to 1.5 ksf. The Pleistocene-age Older Alluvium found south of the 91 freeway is particularly favorable. Soft clays and loose fills near the Santa Ana River offer negligible skin friction and should be cased or treated.
Location and service area
We serve projects across Anaheim and its metropolitan area.
