Under the 2024 California Building Code (CBC) and ASCE 7-22 seismic provisions, any retaining structure in Anaheim must resist ground accelerations from the nearby San Jacinto fault zone. For mechanically stabilized earth (MSE) walls, this demands careful reinforcement layout and backfill selection to prevent deformation under cyclic loading. Our team designs MSE systems that integrate with local soil conditions, whether you are building a bridge approach on the I-5 corridor or a commercial site near Angel Stadium. Before specifying reinforcement, we typically run a geotechnical site investigation to classify on-site materials and determine the appropriate facing panel type. The result is a wall that meets both structural safety and long-term serviceability criteria for Anaheim’s mixed alluvial and colluvial deposits.
Proper MSE wall design in Anaheim requires site-specific shear strength data and seismic loading parameters per ASCE 7-22 to avoid differential movement in variable alluvial soils.
Methodology and scope
Anaheim’s urban expansion from the 1950s onward turned former citrus groves into dense residential and industrial zones, often atop deep alluvial fans with variable compaction. That legacy means many sites contain undocumented fill or loose sands that challenge MSE wall performance. Our design process starts with a thorough review of shear strength parameters using direct shear testing on representative samples, then proceeds to reinforcement layout optimization with AASHTO LRFD methodology. We evaluate factors such as:
Internal stability against reinforcement pullout and rupture
External stability including sliding, overturning, and bearing capacity
Global stability considering the influence of adjacent slopes or foundations
Each parameter is calibrated to Anaheim’s specific seismic site class, typically C or D per NEHRP, ensuring the wall behaves predictably during a moderate earthquake. This approach has been applied on projects ranging from sound walls along the 91 freeway to tiered garden walls in the Platinum Triangle redevelopment area.

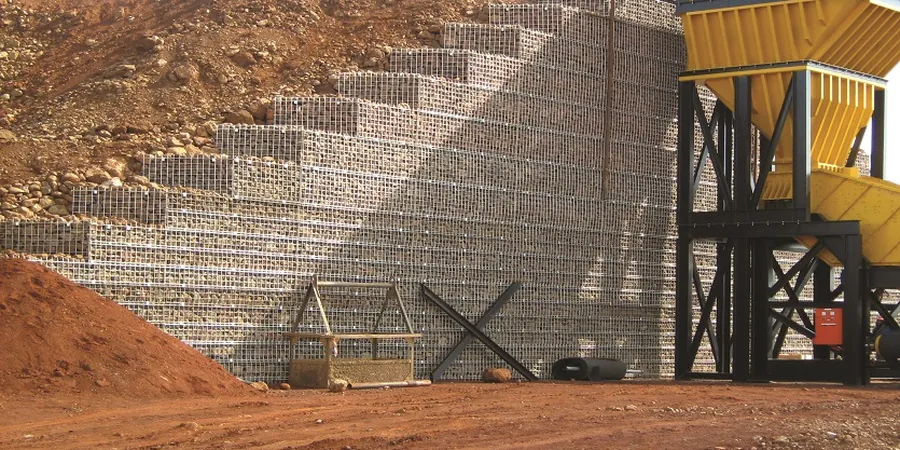

Technical reference image — Anaheim
Local considerations
A common mistake we see in Anaheim is assuming all fill soils behave the same for MSE wall design. Contractors sometimes import clean sand without verifying its angle of internal friction, then wonder why the wall bulges after the first wet season. Another frequent error is ignoring the liquefaction potential of saturated loose sands near the Santa Ana River channel. When the reinforcement is designed without considering post-liquefaction residual strength, the entire wall face can translate several inches during a seismic event. Our designs always include a liquefaction assessment for sites within the floodplain, and we specify geogrid layers with adequate connection strength to the facing units, avoiding the costly retrofits that plague hastily built walls in the area.
We calculate geogrid type, length, and vertical spacing to resist tensile forces at each reinforcement level, using limit equilibrium methods that account for Anaheim’s seismic accelerations. The output includes connection details for modular block or panel facing.
Our engineers check overturning, sliding, and bearing pressure against allowable values derived from SPT N-values and laboratory tests on on-site soils. For walls taller than 20 feet, we also perform global stability analysis using Spencer’s method.
03
Seismic Design & Liquefaction Mitigation
Following ASCE 7-22, we compute pseudostatic and displacement-based seismic demands. Where liquefiable layers exist, we recommend ground improvement techniques such as stone columns or deep soil mixing before wall construction, and adjust reinforcement lengths accordingly.
Applicable standards
AASHTO LRFD Bridge Design Specifications (9th Edition, 2020), ASCE 7-22 Minimum Design Loads and Associated Criteria for Buildings, 2024 California Building Code (CBC, Title 24), ASTM D6638-18 Standard Test Method for Determining Connection Strength Between Geogrid and MSE Wall Facing
Frequently asked questions
What soil conditions in Anaheim require special attention for MSE wall design?
Anaheim’s alluvial soils often include loose sands and silty clays with variable compaction. When these soils are saturated near the Santa Ana River floodplain, liquefaction potential increases. We also encounter undocumented fill from past agricultural use. Our designs incorporate site-specific shear strength and compaction requirements to address these conditions.
How much does professional MSE wall design cost in Anaheim?
For a typical wall up to 1,500 square feet of facing area, design fees range from US$1.190 to US$4.070 depending on wall height, seismic complexity, and number of reinforcement layers. This includes internal and external stability calculations, connection strength verification, and a stamped set of construction drawings.
What is the difference between a tieback wall and an MSE wall for Anaheim projects?
Tieback walls use active anchors drilled into the retained soil and are better for constrained sites where right-of-way is limited. MSE walls rely on passive reinforcement layers extending into the backfill and are generally more cost-effective for heights under 40 feet. In Anaheim’s flat terrain with adequate setback, MSE walls are often preferred for highway and residential applications.
Can an MSE wall be built on a slope in Anaheim?
Yes, but global stability analysis becomes critical. If the slope angle exceeds 3H:1V or the foundation soil is loose, we may recommend benching the base or including deeper reinforcement layers. Anaheim’s hillside areas near the Santa Ana Mountains require careful attention to seepage and erosion control behind the wall face.
