Our field crew deploys a combination of digital tiltmeters, precise optical levels, and settlement plates across the project site to monitor vertical movement in real time. Anaheim's subsurface profile, shaped by the Santa Ana River floodplain, includes interbedded sands, silts, and clays that respond differently under load. We install these instruments at multiple depths to capture both immediate and long-term deformation patterns. Before setting up the monitoring array, we always conduct a soil classification to identify the exact layer sequence across the property.
Anaheim's alluvial soils with interbedded clays and sands require layered consolidation analysis to predict differential movement accurately.
Methodology and scope
We follow ASTM D1586 for standard penetration testing and ASTM D2435 for one-dimensional consolidation to derive compression indices specific to Anaheim's alluvial deposits. Anaheim's proximity to the Whittier fault and its location within Seismic Zone 4 under IBC 2018 means dynamic settlement from earthquake shaking must be evaluated separately. The analysis includes calculating differential movement between adjacent columns or footings using the modulus of elasticity from lab oedometer tests. We also incorporate the influence of groundwater fluctuations, which in Anaheim can vary seasonally by up to 4 feet near the Santa Ana River corridor. For projects involving deep foundations, we integrate data from pile load tests to refine the settlement predictions.

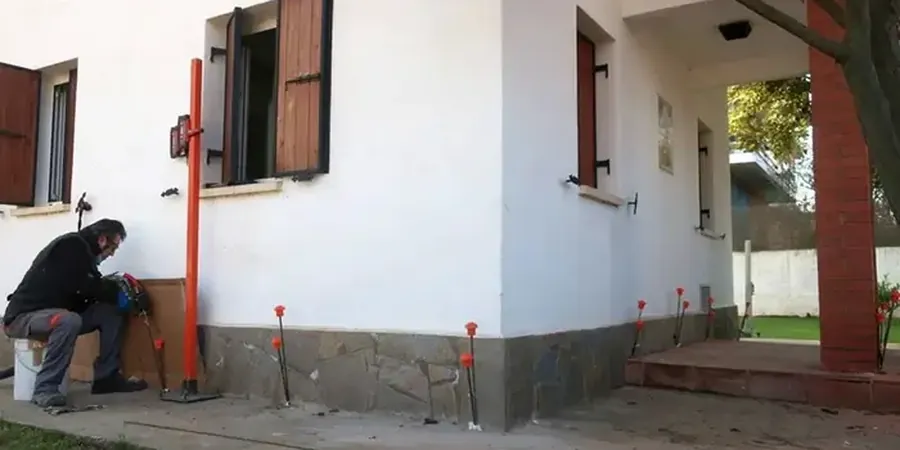

Technical reference image — Anaheim
Local considerations
In Anaheim, we frequently observe that older residential slabs on the eastern side, built on undocumented fill from the 1960s, exhibit differential movements exceeding 2 inches within a decade. The primary cause is the presence of collapsible silty sands that lose volume when saturated after dry periods. Ignoring a proper differential settlement analysis in these areas leads to cracked walls, misaligned doors, and eventual structural damage that costs far more to repair than the initial geotechnical study. The risk is amplified when new construction abuts existing structures without a proper load transfer evaluation.
Installation of settlement plates, optical survey points, and tiltmeters with weekly or monthly readings over the construction and post-construction period.
02
Consolidation laboratory testing
Oedometer tests on undisturbed samples to determine preconsolidation pressure, compression index, and coefficient of consolidation per ASTM D2435.
03
Numerical modeling and prediction
Finite element analysis using Plaxis or Settle3D to compute differential movement under static and seismic loading conditions.
04
Remediation design support
Recommendations for underpinning, soil improvement, or foundation redesign based on measured settlement patterns and soil parameters.
Applicable standards
ASTM D2435-11 – One-dimensional consolidation properties, ASTM D1586-18 – Standard Penetration Test (SPT), IBC 2018 Chapter 18 – Soils and foundations, ASCE 7-16 – Minimum design loads for buildings
Frequently asked questions
How long does a differential settlement analysis take in Anaheim?
A typical study for a single-family home takes 2 to 4 weeks from initial field instrumentation to final report. Larger commercial projects with multiple monitoring points can extend to 8 weeks.
What is the typical cost for a differential settlement study in Anaheim?
The cost ranges between US$810 and US$2,030 depending on the number of monitoring points, depth of instrumentation, and laboratory testing required. A detailed quote is provided after a site visit.
What causes differential settlement in Anaheim soils?
Anaheim's alluvial soils include compressible clay lenses and collapsible silty sands. When these layers are unevenly loaded or when groundwater changes occur, one part of the foundation settles more than another, creating differential movement.
Can differential settlement be fixed after construction?
Yes, repair methods include slab jacking, helical piers, or soil grouting. However, the most cost-effective approach is a pre-construction differential settlement analysis to design foundations that accommodate or prevent the movement.
