Anaheim sits on the eastern edge of the Los Angeles Basin, where the alluvial fans from the Santa Ana Mountains meet flat plain deposits. The groundwater table can rise within 3 m after heavy winter rains, and the near-surface soils range from loose silty sands to stiff clays with cobble lenses. These conditions demand a site-specific approach to road embankment design. Fill placement on compressible alluvium can trigger differential settlement if not properly preloaded, and the seismic setting of Southern California means we must check dynamic stability under MCE shaking. Before we write a single embankment specification, we run a placa-de-carga to verify the subgrade modulus and a densidad-cono-arena to confirm compaction meets Proctor targets.

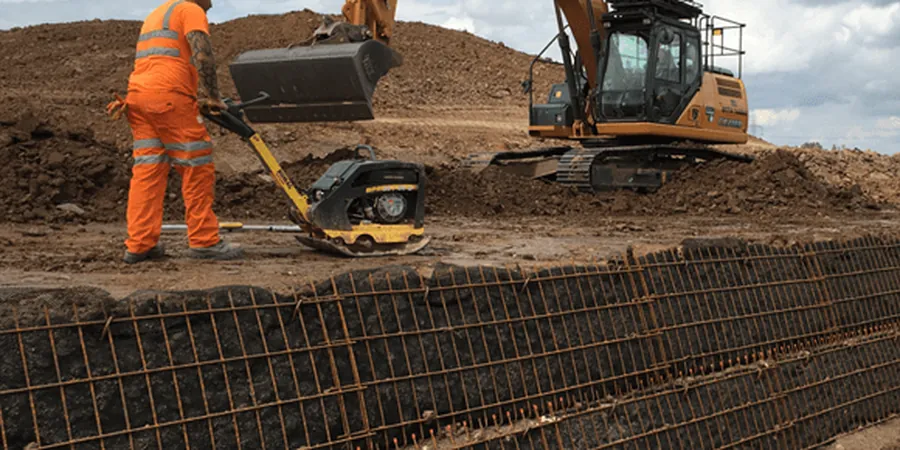

Illustrative image of Terraplenes viales in Anaheim

Fill placed on compressible alluvium without staged construction can settle 100 to 300 mm in the first year alone. Preloading is not optional here.

Methodology and scope

A typical project we handled near the I-5 / SR-91 interchange involved raising the grade 4.5 m for a new truck-access road. The contractor had already stripped topsoil, but we found a 2 m layer of soft clay at the embankment toe — a classic trap. We designed staged construction with wick drains and a surcharge of 30 kPa to accelerate consolidation. The key parameters we track in every Anaheim road embankment design are the compaction curve from a ensayo-proctor modified effort, the CBR at 95% maximum dry density, and the shear strength from consolidated-undrained triaxial tests. We also check the Atterberg limits on the borrow material, because plasticity above 35% means we need lime treatment to avoid shrink-swell problems during dry spells.

Local considerations

ASCE 7-16 requires a minimum factor of safety of 1.5 for static slope stability under long-term drained conditions and 1.1 under seismic loading for embankments in Seismic Design Category D, which covers all of Anaheim. Liquefaction of loose saturated sands at the toe is a real hazard — the 1994 Northridge earthquake triggered lateral spreading in nearby alluvial fills. We run cyclic triaxial tests and SPT-based liquefaction analyses per Youd-Idriss (2001) to quantify the risk. If the factor of safety drops below 1.0, we switch to lightweight fill or install stone columns to improve the foundation.

Technical parameters

Parameter	Typical value
Maximum fill height	6 m (typical for Anaheim industrial developments)
Compaction requirement	95 % of modified Proctor (ASTM D1557)
Minimum CBR for subgrade	8 % at 95 % compaction (ASTM D1883)
Embankment slope ratio	2H:1V or flatter on soft ground
Settlement tolerance	25 mm differential over 30 m length

Associated technical services

Subsurface Exploration

Boreholes with SPT and undisturbed sampling to 20 m depth. We log soil type, measure groundwater, and classify per USCS.

Compaction Control

In-situ density tests (sand cone) and field moisture checks. We calibrate the Proctor curve for each borrow source.

Slope Stability Analysis

Limit-equilibrium analyses using Bishop and Spencer methods. We model both static and pseudo-static seismic conditions.

Settlement Monitoring

Install settlement plates and inclinometers. Track deformation during surcharge and after construction to verify design assumptions.

Frequently asked questions

How deep do you drill for a road embankment design in Anaheim?

We typically drill to at least 1.5 times the embankment height, but not less than 10 m. This ensures we capture any compressible layers below the fill zone.

What is the typical cost for a road embankment design study in Anaheim?

The cost ranges between US$1.300 and US$3.710 depending on the number of boreholes, lab tests, and complexity of the slope analysis. Contact us for a project-specific quote.

Do you need a compaction test for every lift of fill?

Yes. For every 150 mm to 200 mm of loose lift, we run a field density test. Our lab also verifies the Proctor curve if the borrow material changes.

Can you design an embankment on soft clay without wick drains?

It is possible if the clay layer is less than 1.5 m thick and the fill height is under 2 m. For thicker clays, wick drains or staged construction are the standard solution to avoid long-term creep settlement.
