A common mistake we see in Anaheim is relying solely on SPT blow counts for foundation design. The alluvial and older Quaternary deposits beneath the city can vary significantly in stiffness and structure. Without intact specimens, engineers often use conservative strength parameters, driving up foundation costs unnecessarily. Undisturbed sampling with a thin-walled Shelby tube recovers soil in its natural state, preserving fabric, moisture content, and cementation. This is critical when designing for settlements in the soft layers near the Santa Ana River corridor. Complementing the Shelby tube recovery with a [MASW survey](/masw-vs30/) helps correlate shear-wave velocity profiles across the site, providing a more complete picture before lab testing begins.

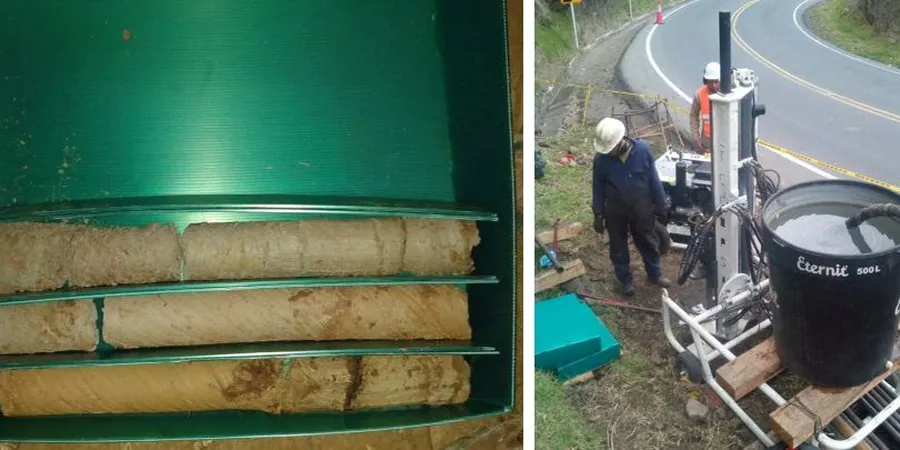

A recovered Shelby tube sample preserves the natural soil structure, allowing our lab to measure true consolidation parameters for Anaheim's variable alluvial deposits.
Methodology and scope
ASTM D1587 specifies the use of a thin-walled tube with an area ratio below 10% to minimize sample disturbance. In Anaheim, where soils range from stiff clays of the Pacoima Formation to loose sands along the river floodplain, maintaining sample integrity is non-negotiable. Our procedure includes:
Cleaning the borehole bottom before advancing the Shelby tube
Applying a steady, continuous push rate of 0.5 to 1.0 ft/min
Sealing and cushioning samples on-site to prevent moisture loss
These steps ensure that laboratory results for consolidation, triaxial strength, and permeability reflect actual field conditions. The local geology demands this level of care.
Technical reference image — Anaheim
Local considerations
Soils in the western Anaheim industrial area, near the former orange groves, often contain cemented silty sands with moderate collapse potential. Two miles east, near the Anaheim Hills, the older Terrace deposits exhibit high plasticity clays that can swell. Designing a shallow foundation for a warehouse in the flatlands versus a hillside home requires completely different parameters. Undisturbed sampling reveals these contrasts directly. Without it, you risk either an overly conservative mat slab or a slab-on-grade that settles unevenly. Understanding the local variation is the first step toward safe, economical design.
ASTM D2435 oedometer test on undisturbed clay specimens. Determines compression index, preconsolidation pressure, and coefficient of consolidation for settlement predictions in Anaheim's silty clays.
02
Triaxial Compression (CU & CD)
Consolidated-undrained and consolidated-drained triaxial tests on intact specimens. Provides effective stress strength parameters c' and phi' for slope stability and foundation design in the local alluvial soils.
03
Hydraulic Conductivity Test
Falling-head permeability test on undisturbed samples. Evaluates in-situ drainage behavior for dewatering design and infiltration rates in Anaheim's sandy and silty layers.
What is the difference between undisturbed and disturbed sampling?
Disturbed sampling (SPT split-spoon) recovers a remolded soil sample that cannot be used for strength or consolidation testing. Undisturbed sampling uses a thin-walled Shelby tube to extract a relatively intact specimen preserving natural fabric, moisture, and structure. The latter is essential for advanced lab tests that require representative field conditions.
How much does undisturbed sampling with a Shelby tube cost in Anaheim?
The typical cost ranges from US$400 to US$930 per sample, depending on depth, borehole preparation, and number of tubes. The price includes field recovery, on-site sealing, and transport to our accredited lab. Volume discounts apply for projects with multiple sample locations.
At what depths should I request Shelby tube samples in Anaheim?
Depths should target the zone of significant stress influence, generally 1.5 to 2 times the footing width below the bearing level. In Anaheim's alluvial deposits, we often sample at 5, 10, and 15 feet to capture the soft to medium clay layers that govern settlement. Coordination with the geotechnical engineer is recommended.
Can I use Shelby tube samples for liquefaction analysis?
Shelby tube samples are not ideal for liquefaction assessment because the cyclic behavior depends on fabric and fines content that may be altered during sampling. For liquefaction evaluation in Anaheim, we recommend combining SPT blow counts with shear-wave velocity (MASW) measurements. Undisturbed samples are better suited for consolidation and strength testing.
