A common mistake we see from contractors working in Anaheim is assuming that preloading design without surcharge is simply a matter of piling fill and waiting. They underestimate how the city's deep alluvial deposits, shaped by the Santa Ana River and its historic floodplains, behave under sustained load. Without a proper consolidation analysis tied to site-specific soil parameters, the expected settlement reduction never materializes, and the project ends up with differential movements that crack pavements or tilt light structures. Before placing any fill, we always run a detailed consolidation test on undisturbed samples, then pair those results with a placa de carga to verify stiffness at the surface and a ensayo cpt for continuous stratigraphic profiling. That combination gives us the actual compression indices and coefficient of consolidation needed to predict time-rate behavior in Anaheim's layered sands, silts, and clays.
Preloading without surcharge in Anaheim's alluvial soils requires consolidation coefficients measured on undisturbed samples, not assumed from regional tables.
Methodology and scope
Anaheim sits at an elevation of roughly 160 feet above sea level and experiences a semi-arid climate with less than 14 inches of annual rainfall, yet its subsurface tells a different story. The upper 20 to 40 feet consist of alternating silty sands and fat clays left by the meandering Santa Ana River channel over the last 10,000 years. For preloading design without surcharge, we rely on oedometer tests per ASTM D2435 to determine the pre-consolidation pressure and compression ratio. The data then feeds into Terzaghi's one-dimensional consolidation theory, but we account for the secondary compression that Anaheim's clay layers exhibit when loaded beyond their historic maximum. We also cross-check with a densidad cono arena to ensure the initial fill density matches the assumed unit weight in our calculations.
Preloading duration: typically 3 to 6 months depending on clay thickness and drainage path length.
Allowable post-construction settlement: usually 0.5 to 1 inch for warehouse slabs, 0.25 inch for tilt-up panels.
Monitoring: settlement plates and piezometers installed at multiple depths to track pore pressure dissipation.
Combining field instrumentation with lab-derived coefficients lets us validate the design in real time. We also incorporate a clasificacion suelos via the Unified Soil Classification System to group similar strata for analysis.

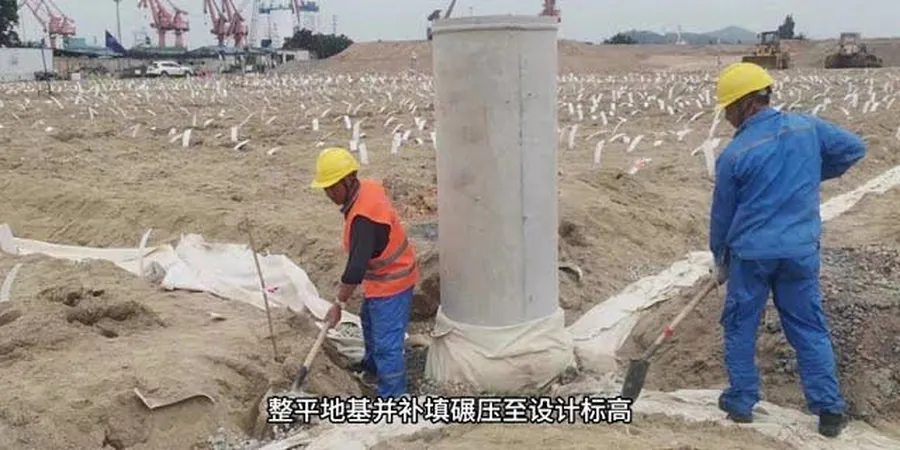

Technical reference image — Anaheim
Local considerations
Anaheim's urban development accelerated dramatically after the 1950s, with large tracts of former citrus groves and river floodplains converted into industrial parks and residential subdivisions. Many of those early projects placed fill without any preloading design, and today we see the consequences: cracked warehouse slabs, misaligned runway pavement at nearby airfields, and differential settlement between building columns. The risk is not just cosmetic. When the clay layers undergo secondary compression decades after construction, utilities rupture and floor elevations shift beyond serviceability limits. Applying a properly designed preloading without surcharge now—before the structure goes up—eliminates that long-term creep. We always recommend at least 90% primary consolidation completion before removing the fill, verified by the pore pressure dissipation curve from field piezometers.
Laboratory oedometer tests per ASTM D2435 on thin-walled tube samples. We determine Cc, Cr, Cv, and pre-consolidation pressure specific to each clay stratum found in Anaheim. Results are delivered with a settlement-time curve for your specific fill height and drainage conditions.
02
Field Instrumentation & Monitoring
Installation of settlement plates, pneumatic or vibrating wire piezometers, and survey monuments. We monitor pore pressure dissipation and surface settlement weekly during the preloading period, providing a report that confirms when the design degree of consolidation has been reached.
How long does preloading without surcharge take in Anaheim's soils?
Typical durations range from 2 to 6 months for primary consolidation, depending on clay layer thickness and drainage path length. In Anaheim's alluvial deposits, the silty sands interbedded with clay provide vertical drainage, so we often see 80-90% consolidation in about 4 months for a 10-foot clay layer. We verify with settlement plate data and pore pressure readings before removing the fill.
What is the cost range for a preloading design study in Anaheim?
For a typical industrial or commercial project in Anaheim, the geotechnical investigation and preloading design (including lab consolidation tests, analysis, and monitoring recommendations) falls between US$790 and US$1,820. The final cost depends on the number of borings, sample quality, and instrumentation scope, but that range covers the core design work.
Can preloading alone fix settlement problems without surcharge?
Yes, if the required post-construction settlement tolerance is moderate (0.5 to 1 inch). Preloading without surcharge works well when the fill height is sufficient to exceed the design load by a margin that compensates for secondary compression. In Anaheim, where clay layers are often overconsolidated by prior desiccation, the method is especially effective. We always run oedometer tests first to confirm the pre-consolidation margin.
