A common mistake among developers grading hillside lots in the Anaheim Hills area is assuming that a flat pad after cutting guarantees long-term stability. The subsurface conditions beneath the fill, particularly the ancient landslide deposits and colluvium layers that mantle the Santiago Formation siltstones, can reactivate if the factor of safety is not properly evaluated. That is why a rigorous slope stability analysis in Anaheim must incorporate both limit equilibrium methods and a site-specific characterization of shear strength parameters. When the geology includes interbedded sandstones and claystones, relying on published tables without in-situ verification often leads to costly remedial work later. A thorough investigation that includes the standard penetration test for strength profiling helps anchor the model to real conditions.
The 2018 Canyon Fire scar in Anaheim Hills showed that post-wildfire debris flows can mobilize on slopes with factors of safety barely above 1.2.
Methodology and scope
In Anaheim, we frequently observe that contractors focus solely on the final slope angle while ignoring the groundwater regime that fluctuates with the semi-arid hydrology and seasonal infiltration from the Santa Ana River terraces. A proper slope stability analysis in Anaheim must account for perched water tables that develop above the clayey paleosols of the Tustin Member. We combine limit equilibrium software (Bishop simplified, Spencer) with probabilistic sensitivity on cohesion and friction angle. When the project involves a cut slope adjacent to existing homes, we recommend supplementing the model with shear strength data from triaxial tests and field density measurements to validate the assumed parameters. The result is a design that meets the IBC 2024 minimum factor of safety of 1.5 for static conditions and 1.1 for pseudo-static seismic loading.

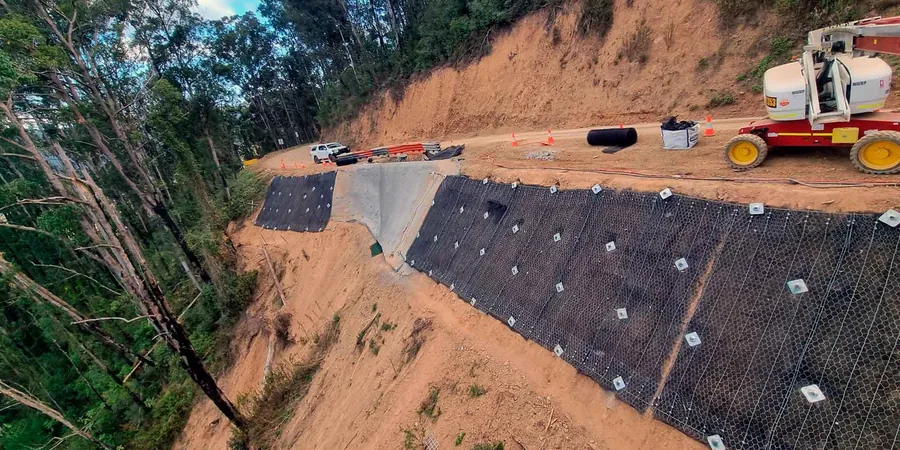

Technical reference image — Anaheim
Local considerations
Anaheim's urban expansion into the Santa Ana Canyon and the Anaheim Hills since the 1960s involved extensive grading on the Perris block terrain. These ancient alluvial fans and dissected pediments contain multiple generations of colluvial deposits that are prone to translational sliding when undercut. Several residential subdivisions built on the Yorba Member siltstone have experienced slow creep movements during wet El Niño winters, damaging pool decks and retaining walls. A slope stability analysis in Anaheim that ignores the residual shear strength after peak failure can underestimate the long-term deformation. Our team models both peak and fully softened strengths using direct shear tests on samples taken from the slip zone, ensuring the design accounts for progressive failure mechanisms typical of the region's overconsolidated clays.
ASTM D3080 (direct shear) / ASTM D4767 (CU triaxial)
Groundwater monitoring period
Minimum 90 days during wet season
Critical slip surface search method
Monte Carlo / auto-grid search (Rocscience Slide)
Seismic coefficient (k_h)
0.2g to 0.35g per ASCE 7-22 Site Class D
Associated technical services
01
Limit Equilibrium Modeling
We build 2D cross-sections using borehole logs and geophysical profiles, then run Bishop, Janbu, and Spencer analyses for both circular and non-circular failure surfaces. The output includes the critical slip surface location and the sensitivity of the factor of safety to cohesion and groundwater depth.
02
Shear Strength Characterization
Our laboratory performs consolidated-undrained triaxial tests with pore pressure measurement and multi-stage direct shear tests on undisturbed samples. For residual strength we use the ring shear apparatus, which is essential for reactivated landslides on the Santiago Formation claystones.
03
Instrumentation and Monitoring
We install inclinometer casings, vibrating wire piezometers, and surface crack monitors to track movement and pore pressure changes over time. This data validates the analytical model and provides early warning for active slopes during the rainy season in Anaheim.
What is the typical cost range for a slope stability analysis in Anaheim?
For a residential lot or small commercial pad, the slope stability analysis in Anaheim typically ranges between US$1.440 and US$4.450, depending on the number of cross-sections, the complexity of the geology, and whether laboratory shear tests are included. The higher end covers multiple scenarios with seismic loading and probabilistic sensitivity.
How deep do the borings need to be for a slope stability analysis?
The borings should extend at least 1.5 times the height of the slope below the toe, or until competent bedrock is encountered. In the Anaheim Hills area, where the Santiago Formation siltstone is often overlain by 10 to 40 feet of colluvium, we typically drill to depths of 40 to 80 feet to capture the potential failure surface.
Does a slope stability analysis cover post-wildfire debris flow risk?
Standard limit equilibrium analysis assesses deep-seated rotational or translational slides. For post-wildfire debris flows, we run a separate runout modeling using FLO-2D or RAMMS, incorporating the burned area soil hydrophobicity and the rainfall intensity-duration thresholds for the Santa Ana Canyon. This is not part of the routine stability study but can be added as a scope extension.
What is the difference between static and pseudo-static analysis?
A static analysis evaluates the factor of safety under gravity and groundwater loads only. A pseudo-static analysis applies a horizontal seismic coefficient (k_h) to simulate earthquake acceleration. In Anaheim, the IBC and ASCE 7 require a pseudo-static check with k_h values between 0.2g and 0.35g for Site Class D, reducing the allowable minimum factor of safety from 1.5 to 1.1.
