We worked on a six-story condominium project near Katella Avenue, right where the ground transitions from older alluvium to young Holocene deposits. The client needed a site response analysis because the building fell under Seismic Design Category D per ASCE 7-22. We deployed a 48-channel seismograph array to measure shear-wave velocity down to 30 meters. The Vs30 profile came out at 265 m/s, placing the site in Class D. That changed the design spectrum significantly. For deeper insight we also ran a [MASW survey](masw-vs30) across the property to confirm layer boundaries. The analysis showed amplification factors near 1.8 in the 0.3-0.6 second period range. That meant the structural engineer had to stiffen the upper floors. This is exactly the kind of ground-motion behavior that makes site response analysis in Anaheim non-negotiable for mid-rise projects.
A Vs30 of 265 m/s placed the site in Class D and amplified spectral accelerations by 1.8x in the 0.3-0.6 second range.
Methodology and scope
A typical mistake we see in Anaheim is using generic site coefficients from the IBC without running a proper site response analysis. The 2014 La Habra earthquake demonstrated that soft alluvial basins in Orange County amplify long-period motions more than code tables predict. Our approach combines measured shear-wave velocity profiles with strain-compatible modulus reduction curves. We follow the Seed & Idriss (1970) framework updated with Darendeli (2001) curves for local soils. The key parameters we evaluate include peak ground acceleration, spectral accelerations at 5% damping, and response spectra for the site class. To capture uncertainty we also perform [equivalent linear analysis](cimentaciones-sismicas) using SHAKE2000 and compare results with time-domain nonlinear runs. This dual-method protocol gives the structural team confidence that the design spectrum matches what Anaheim soil columns actually deliver during a rupture on the Whittier or Elsinore fault.

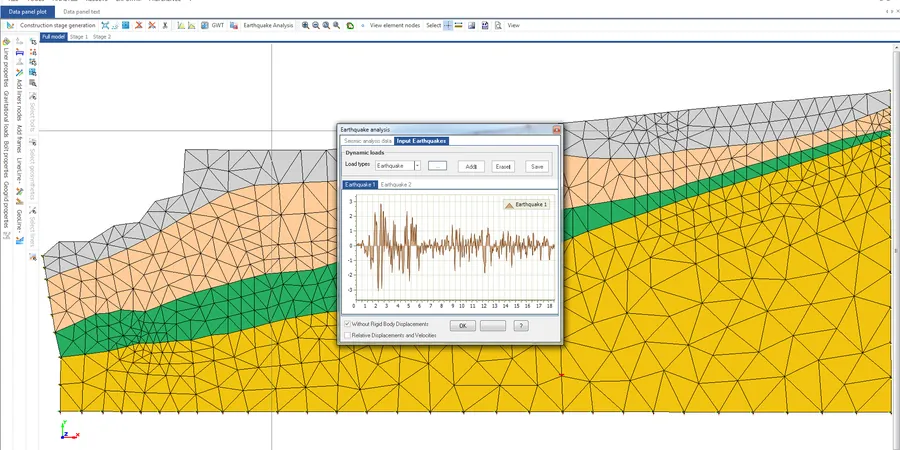

Technical reference image — Anaheim
Local considerations
In Anaheim many times we see projects that skip the site response analysis because the IBC default coefficients seem conservative enough. That assumption fails when the soil column has impedance contrasts from buried paleochannels. The 2008 Chino Hills earthquake showed localized liquefaction and differential settlement in areas with thin Holocene caps over Pleistocene gravels. Without a proper site response analysis you cannot predict where amplification peaks will shift. We always run a minimum of three ground-motion records scaled to the target spectrum, including the 1994 Northridge event, because that pulse-type motion hits Anaheim basin modes directly. Ignoring this step means you design for a uniform hazard spectrum that does not represent your actual column response.
What is the difference between a site response analysis and the IBC default seismic coefficients?
IBC default coefficients are based on generic site class averages that do not account for local soil layering, impedance contrasts, or nonlinear behavior. A site response analysis uses measured Vs30 profiles, modulus reduction curves, and scaled ground motions to produce a site-specific design spectrum. In Anaheim, where Holocene alluvium overlies stiffer Pleistocene deposits, the difference in spectral acceleration at 0.5 seconds can exceed 40%.
Which fault sources dominate the seismic hazard for Anaheim?
The Whittier fault (M 6.8), Elsinore fault (M 7.1), and the San Jacinto fault zone (M 7.5) are the primary contributors. The 2014 La Habra earthquake (M 5.1) on a blind thrust within the Los Angeles basin also illustrates the potential for moderate-magnitude events that produce strong shaking in Anaheim due to basin amplification. Our analysis typically includes fault-specific rupture scenarios from the SCEC Community Fault Model.
How much does a site response analysis in Anaheim cost?
The cost typically ranges between US$1,320 and US$3,730 depending on the number of measurement profiles, the complexity of the soil column, and whether you need both equivalent linear and nonlinear runs. A standard single-profile analysis with two ground-motion records falls at the lower end; multi-profile with three records and liquefaction coupling approaches the upper range.
What soil conditions in Anaheim require a site-specific response analysis?
Any site with soil profiles that include soft Holocene alluvium over stiff Pleistocene gravels, or that have buried paleochannels, requires a site-specific analysis. Anaheim's subsurface is highly variable due to the Santa Ana River floodplain history. Even sites classified as D by default can amplify motions differently than assumed. The ASCE 7-22 requires site response analysis for Seismic Design Categories D, E, and F when the soil profile depth exceeds 30 m.
What standards do you follow for the analysis?
We follow ASCE 7-22 Chapter 21 for site-specific ground motion procedures, NEHRP FEMA P-1050 for site classification, and ASTM D4428 for crosshole seismic testing. All laboratory work is performed under ISO 17025 accreditation. The final report includes the deaggregation of seismic hazard, target spectra, selected ground motions, and the computed surface response spectra with 5% damping.
