The permeameter apparatus sits on the lab bench, ready for the next sample from Anaheim. For granular soils, the constant head method maintains a steady flow gradient. Fine-grained materials require the falling head technique, where the water level drops gradually. Both approaches follow ASTM D2434 protocols, ensuring repeatable results. The technician carefully saturates the specimen under vacuum, removing trapped air that would skew readings. Before running the test, the team often cross-references data with a calicata exploratoria to correlate field conditions with lab behavior.
A k-value difference of one order of magnitude can change a drainage design from functional to failure. Laboratory control eliminates that guesswork.
Methodology and scope
Anaheim sits on the Santa Ana River floodplain, where alluvial deposits create layered soil profiles with variable permeability. The dry Mediterranean climate means the water table fluctuates significantly between wet and dry seasons. This seasonal shift affects how water moves through the subsurface. The laboratory permeability test captures the coefficient of permeability (k) under controlled conditions, eliminating the uncertainty of field measurements. Samples are trimmed carefully to preserve natural structure. For cohesive soils, the falling head method is preferred. Technicians monitor the head drop over time and compute k using Darcy's law. The lab also performs granulometria on the same sample to link grain size distribution with hydraulic conductivity.

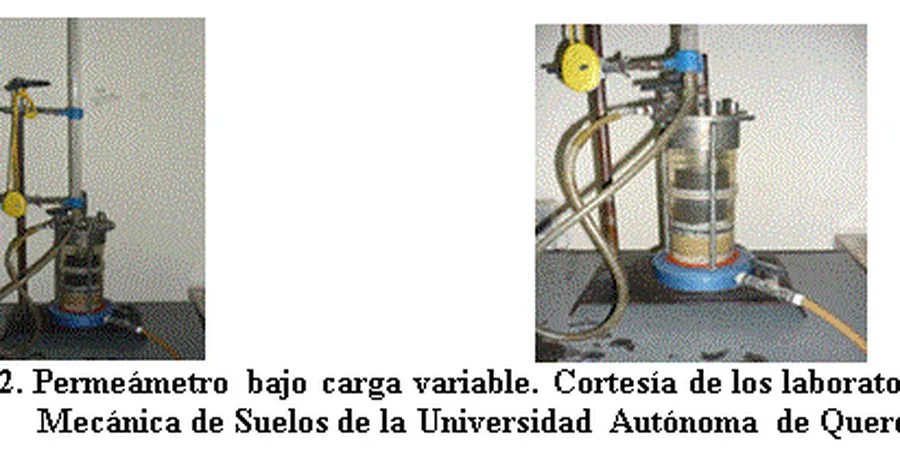

Technical reference image — Anaheim
Local considerations
IBC 2021 and ASCE 7 require site-specific permeability data for foundation drainage, retaining wall design, and leachate control systems. In Anaheim, the shallow groundwater encountered near the Santa Ana River channel makes this data critical. A soil with k = 10⁻⁴ cm/s drains well; one with k = 10⁻⁷ cm/s behaves like a barrier. Misinterpreting that boundary leads to undersized french drains or hydrostatic pressure on basement walls. The laboratory permeability test removes the guesswork by isolating the soil's intrinsic hydraulic behavior from variable field conditions.
Constant Head (ASTM D2434) / Falling Head (ASTM D5856)
Sample Type
Undisturbed or remolded, cohesive or granular
Hydraulic Gradient
0.3 to 5.0 depending on material
Coefficient k Range
10⁻¹ to 10⁻⁸ cm/s
Saturation Method
Back-pressure saturation with Skempton B-check > 0.95
Reporting
k at 20°C, void ratio, dry density, test log
Associated technical services
01
Constant Head Permeability
For clean sands and gravels. The specimen is compacted to target density, saturated under back-pressure, and subjected to a constant hydraulic gradient. Flow is measured over time to calculate k. Ideal for drainage layer verification.
02
Falling Head Permeability
For silts and clays. The standpipe allows the head to drop gradually as water passes through the low-permeability sample. The test runs until a stable k value is achieved, typically over 24 to 48 hours.
03
Flexible Wall Permeability
Uses a triaxial cell with latex membrane to apply confining pressure. This prevents side-wall leakage and simulates in-situ effective stress. Required for very low permeability soils (k < 10⁻⁷ cm/s) used in liners or cut-off walls.
Applicable standards
ASTM D2434-19 (Constant Head Permeability of Granular Soils), ASTM D5856-15 (Falling Head Permeability of Fine-Grained Soils), IBC 2021 Section 1804 (Drainage and Subsurface Water Control)
Frequently asked questions
What is the difference between falling head and constant head permeability tests?
The constant head test maintains a stable water level gradient through the sample and is used for granular soils with k > 10⁻⁴ cm/s. The falling head test lets the water level drop as it flows through the sample, making it suitable for fine-grained soils with lower permeability. Both methods calculate the coefficient of permeability k using Darcy's law, but the falling head method accommodates very low flow rates that would be impractical to measure under constant head.
How much does a laboratory permeability test cost in Anaheim?
The typical cost for a falling or constant head permeability test in Anaheim ranges from US$440 to US$550 per sample. This includes specimen preparation, saturation, testing, and a full report with k value at 20°C, void ratio, and dry density. The price varies with sample complexity and whether flexible wall confining pressure is required.
Why is laboratory permeability testing important for projects in Anaheim?
Anaheim's alluvial soils from the Santa Ana River floodplain have highly variable permeability. A site with sand lenses may drain rapidly, while adjacent clay layers restrict flow. Laboratory testing isolates the soil's intrinsic hydraulic conductivity under controlled conditions, eliminating the influence of field heterogeneity. This data is essential for sizing drainage systems, designing retaining walls with weep holes, and evaluating groundwater seepage into excavations.
